Question: A gate [ shown in green with a fixed angle of 1 3 5 ] in a water tank has a frictionless hinge [ a

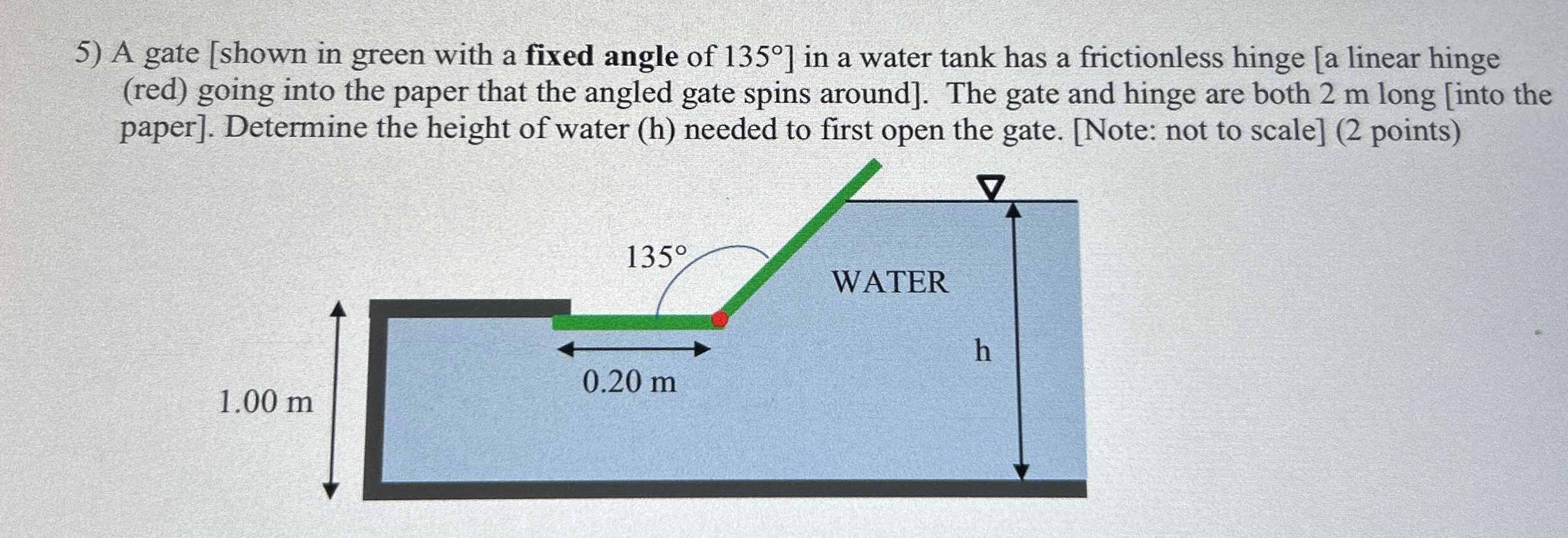

A gate [shown in green with a fixed angle of 135] in a water tank has a frictionless hinge [a linear hinge (red) going into the paper that the angled gate spins around]. The gate and hinge are both 2 m long [into the paper]. Determine the height of water (h) needed to first open the gate. [Note: not to scale](2 points)
A gate [ shown in green with a fixed angle of 1 3

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
