Question: a ) Please design an inverting amplifier with an op amp which has a gain of 1 5 . The amplifier shall have a 3

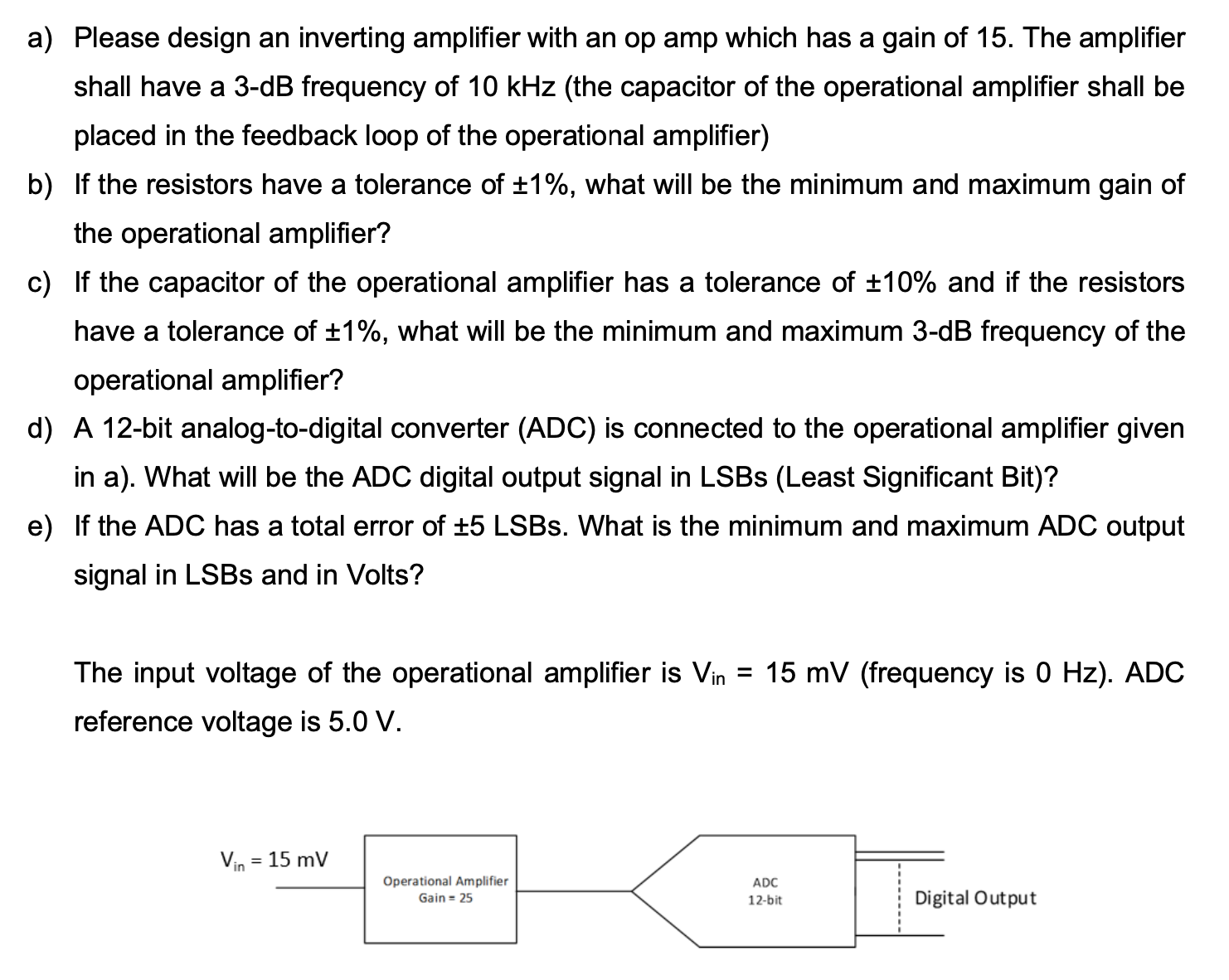

a) Please design an inverting amplifier with an op amp which has a gain of 15. The amplifier shall have a 3-dB frequency of 10 kHz (the capacitor of the operational amplifier shall be placed in the feedback loop of the operational amplifier)
b) If the resistors have a tolerance of +-1%, what will be the minimum and maximum gain of the operational amplifier?
c) If the capacitor of the operational amplifier has a tolerance of +-10% and if the resistors have a tolerance of +-1%, what will be the minimum and maximum 3-dB frequency of the operational amplifier?
d) A 12-bit analog-to-digital converter (ADC) is connected to the operational amplifier given in a). What will be the ADC digital output signal in LSBs (Least Significant Bit)?
e) If the ADC has a total error of +-5 LSBs. What is the minimum and maximum ADC output signal in LSBs and in Volts?
The input voltage of the operational amplifier is V_("in ")=15mV (frequency is 0 Hz ). ADC reference voltage is 5.0 V .
a ) Please design an inverting amplifier with an
