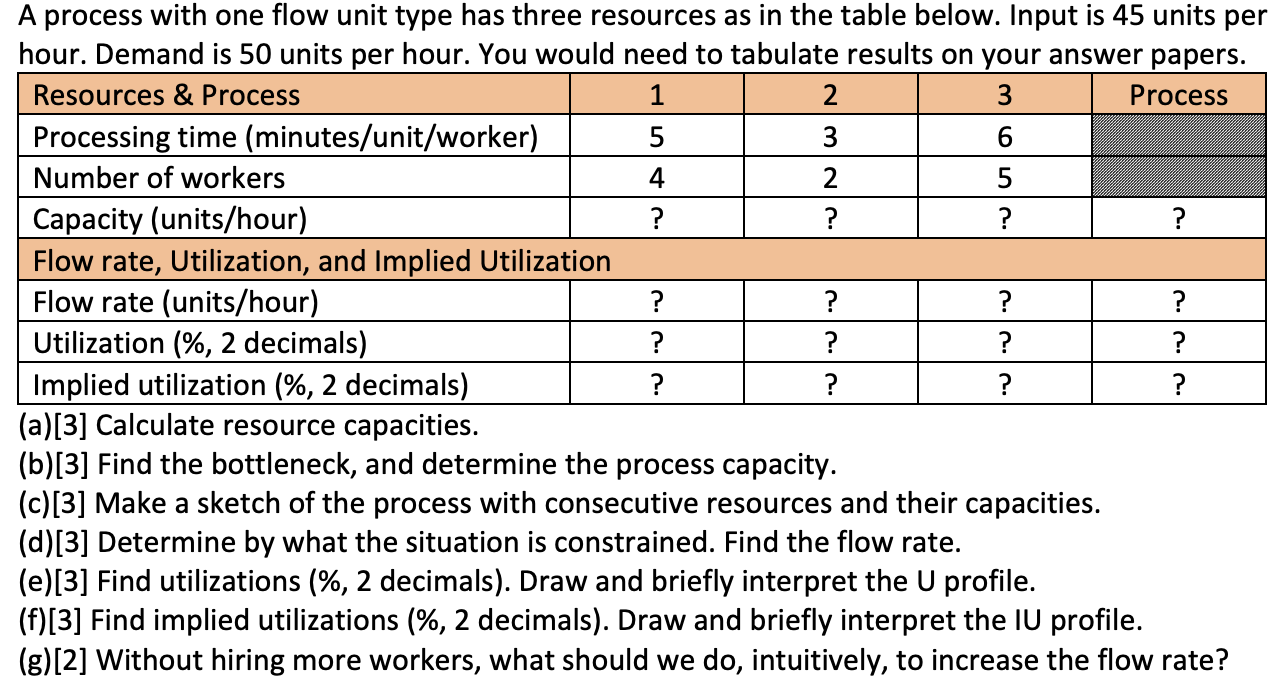

A process with one flow unit type has three resources as in the table below. Input is 45 units per hour. Demand is 50 units per hour. You would need to tabulate results on your answer papers.

A process with one flow unit type has three resources as in the table below. Input is 45 units per hour. Demand is 50 units per hour. You would need to tabulate results on your answer papers. Resources & Process 1 3 Process Processing time (minutes/unit/worker) 5 Number of workers 2 Capacity (units/hour) Flow rate, Utilization, and Implied Utilization Flow rate (units/hour) ? ? | Utilization (%, 2 decimals) ? | Implied utilization (%, 2 decimals) ? ? ? (a)[3] Calculate resource capacities. (b)[3] Find the bottleneck, and determine the process capacity. (c)[3] Make a sketch of the process with consecutive resources and their capacities. (d)[3] Determine by what the situation is constrained. Find the flow rate. (e)[3] Find utilizations (%, 2 decimals). Draw and briefly interpret the U profile. (f)[3] Find implied utilizations (%, 2 decimals). Draw and briefly interpret the IU profile. (g)[2] Without hiring more workers, what should we do, intuitively, to increase the flow rate
