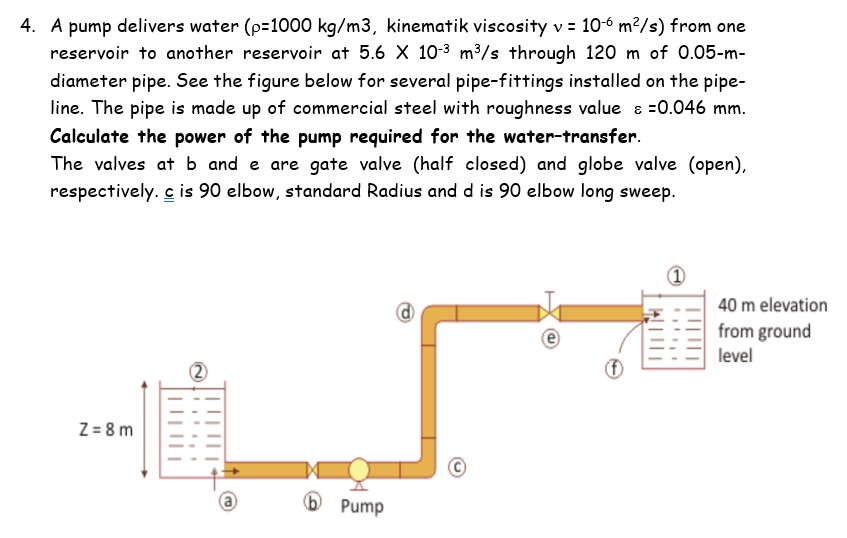

A pump delivers water $,$ kinematik viscosity $\{$:$v={10}^{-6}\frac{m^2}{s})$ from one

reservoir to another reservoir at $5\mathrm{.}6{10}^{-3}\frac{m^3}{s}$ through $120m$ of $0\mathrm{.}05-m-$

diameter pipe. See the figure below for several pipe$-$fittings installed on the pipe$-$

line. The pipe is made up of commercial steel with roughness value $=0\mathrm{.}046mm.$

Calculate the power of the pump required for the water$-$transfer.

The valves $a+b$ and $e$ are gate valve $($half closed$)$ and globe valve $($open$),$

respectively. $c_{{?}_{?}}$ is $90$ elbow, standard Radius and $d$ is $90$ elbow long sweep.
