Question: A rectangular plate is acted upon by the force and couple shown. This system is to be replaced with a single equivalent force. The force

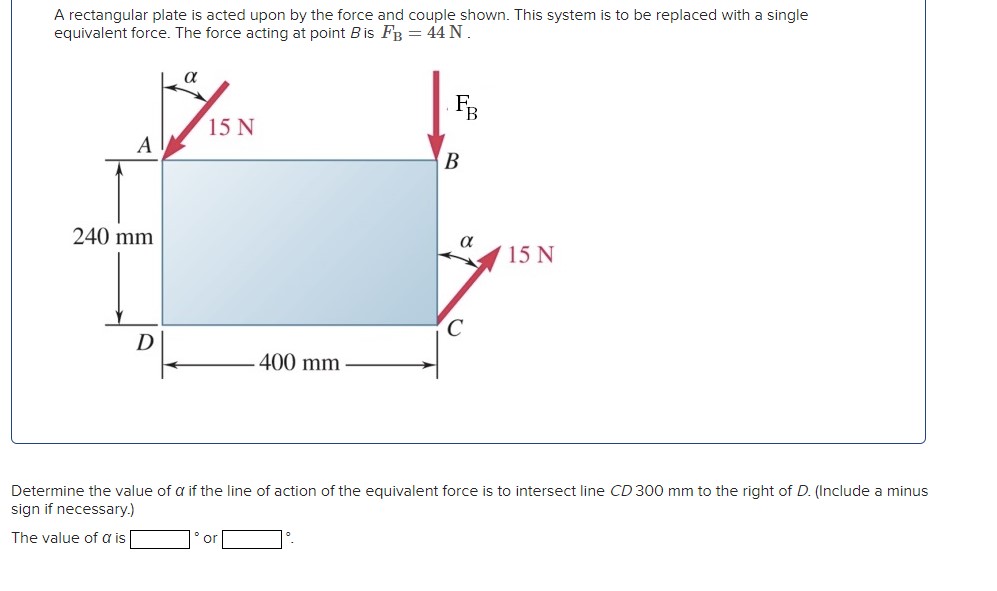

A rectangular plate is acted upon by the force and couple shown. This system is to be replaced with a single equivalent force. The force acting at point B is FB=44N.
Determine the value of if the line of action of the equivalent force is to intersect line CD300mm to the right of D.(Include a minus sign if necessary.)
The value of is
or
@
A rectangular plate is acted upon by the force
