Question: ( a ) Set up the element at point A on the solid shaft in Figure and indicate the magnitude and directions of stresses due

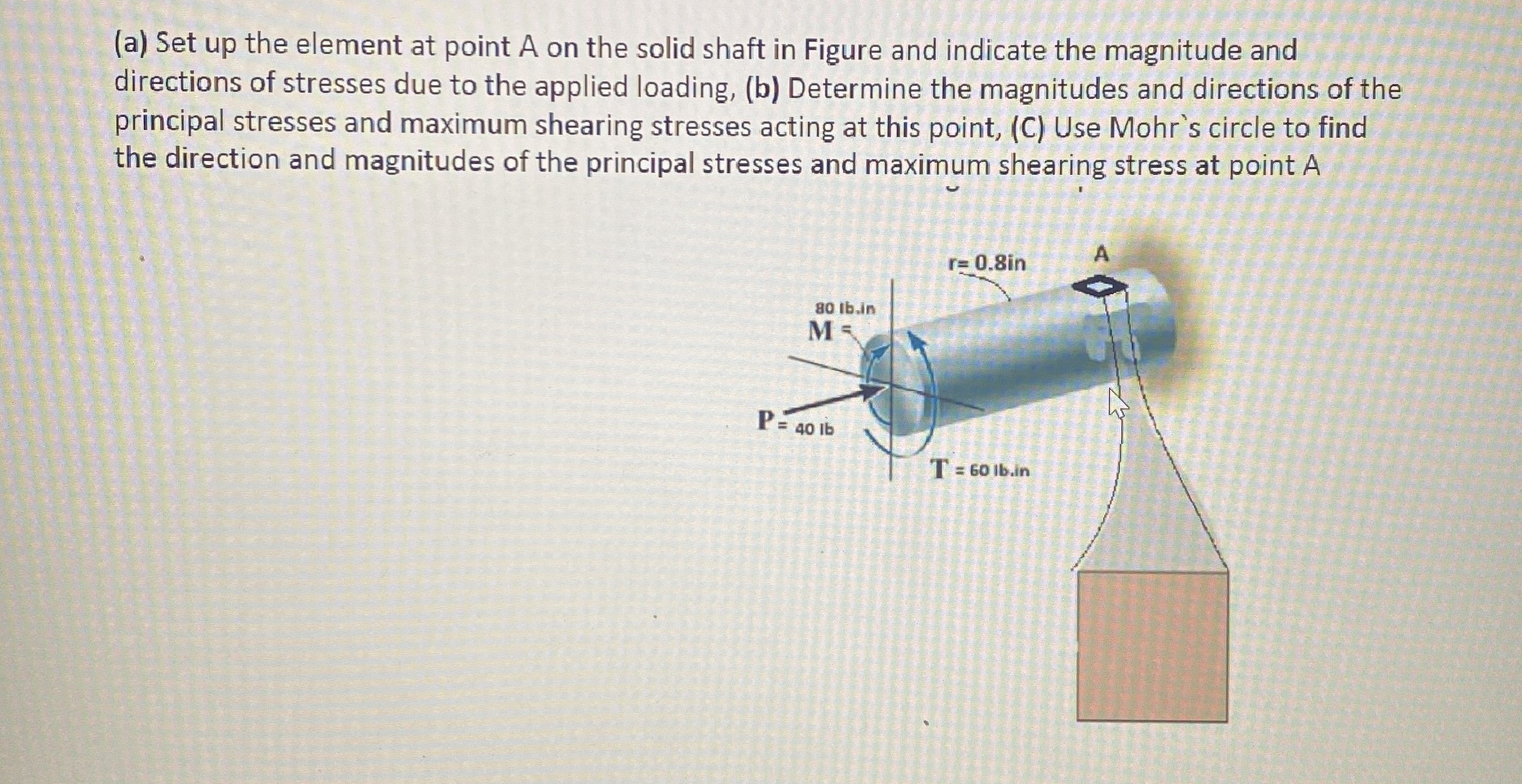

(a) Set up the element at point A on the solid shaft in Figure and indicate the magnitude and directions of stresses due to the applied loading, (b) Determine the magnitudes and directions of the principal stresses and maximum shearing stresses acting at this point, (C) Use Mohr's circle to find the direction and magnitudes of the principal stresses and maximum shearing stress at point A
( a ) Set up the element at point A on the solid
