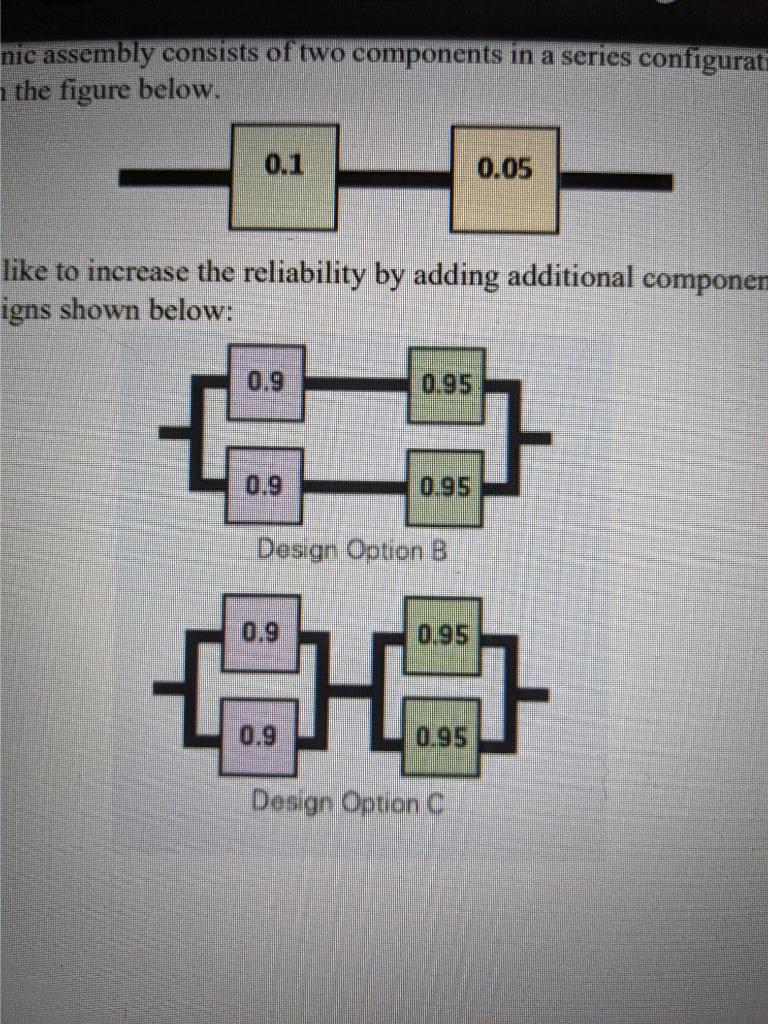

A simple electronic assembly consists of two components in a series configuration with failure rates as shown in the figure below.

Engineers would like to increase the reliability by adding additional components in one of the two proposed designs shown below:

Solve the following questions manually and show all the steps. a) Find the reliability of the original design. b) Which proposed design has the best reliability?

nic assembly consists of two components in a series configurat 1 the figure below. 0.1 0.05 like to increase the reliability by adding additional componen igns shown below: 0.9 0.95 0.9 0.95 Design Option B 0.9 0.95 CH 0.9 0.95 Design Option C
