Question: A simple pivot-type gripper, shown in Fig. P. 7.9.2(a), is used to lift a rectangular block of 3 kg mass. It is to be

A simple pivot-type gripper, shown in Fig. P. 7.9.2(a), is used to

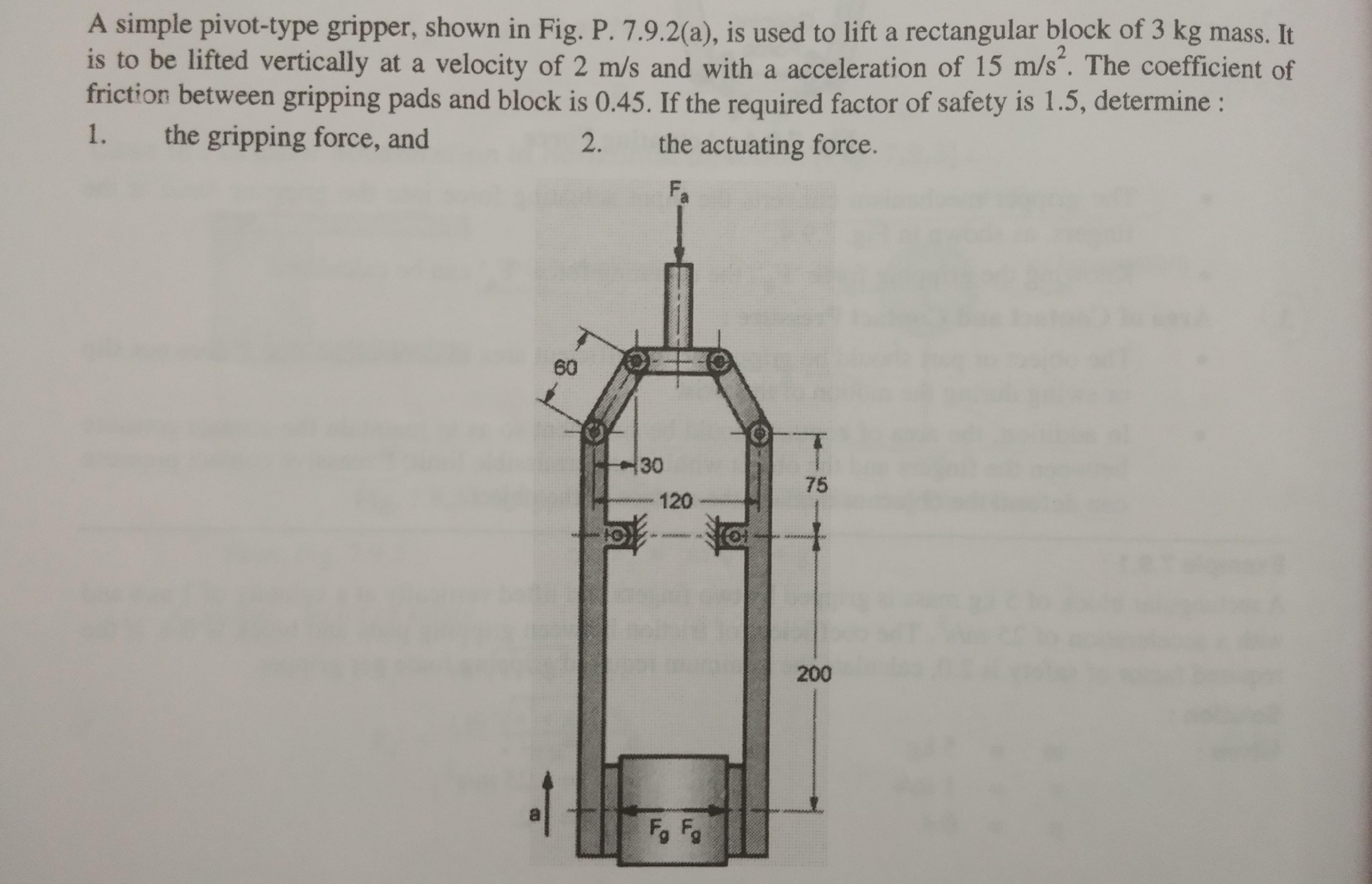

A simple pivot-type gripper, shown in Fig. P. 7.9.2(a), is used to lift a rectangular block of 3 kg mass. It is to be lifted vertically at a velocity of 2 m/s and with a acceleration of 15 m/s. The coefficient of friction between gripping pads and block is 0.45. If the required factor of safety is 1.5, determine : the gripping force, and 1. 2. the actuating force. Fa 60 30 75 120 200 F, Fg

Step by Step Solution

★★★★★

3.43 Rating (159 Votes )

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock

Sotution ... View full answer

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
