Question: a) Status register contains the Condition Code Register (CCR) which is used for indicating the result of a program execution. D4 =$88994433, D5=$88994488 Byte System

a) Status register contains the Condition Code Register (CCR) which is

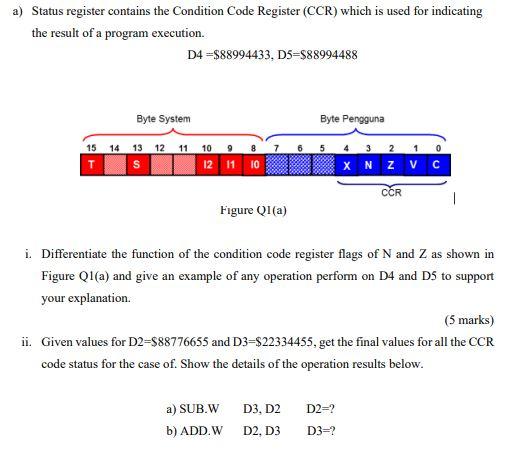

a) Status register contains the Condition Code Register (CCR) which is used for indicating the result of a program execution. D4 =$88994433, D5=$88994488 Byte System Byte Pengguna 1 15 14 13 12 11 10 9 8 12 11 10 T X N Z VC CCR Figure Q1(a) i. Differentiate the function of the condition code register flags of N and Z as shown in Figure Q1(a) and give an example of any operation perform on D4 and DS to support your explanation (5 marks) ii. Given values for D2=588776655 and D3=822334455, get the final values for all the CCR code status for the case of. Show the details of the operation results below. a) SUB.W b) ADD.W D3, D2 D2, D3 D2=? D3=
