Question: A stepped, solid round shaft is loaded as shown in the following figure. Find out ( 1 ) the maximum deflection in y - direction

A stepped, solid round shaft is loaded as shown in the following figure. Find out (1)the maximum deflection in y-direction and its location along the shaft, and (2)the fundamental critical rotating speed for the shaft. Assume the Young's modulus of the shaft is E=207GPa, and all applied loads are in the y-direction and passing the axis of the shaft. Ignore the weight of the shaft in your calculation.

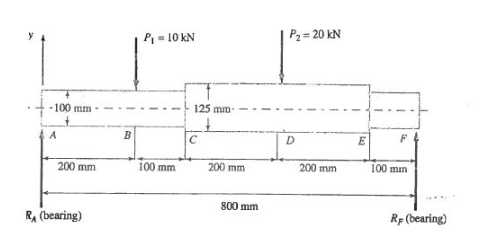

A stepped, solid round shaft is loaded as shown

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
