Question: A structural element is formed using rolled - steel sections shown in the figure ( two L 3 3 1 4 i n , two

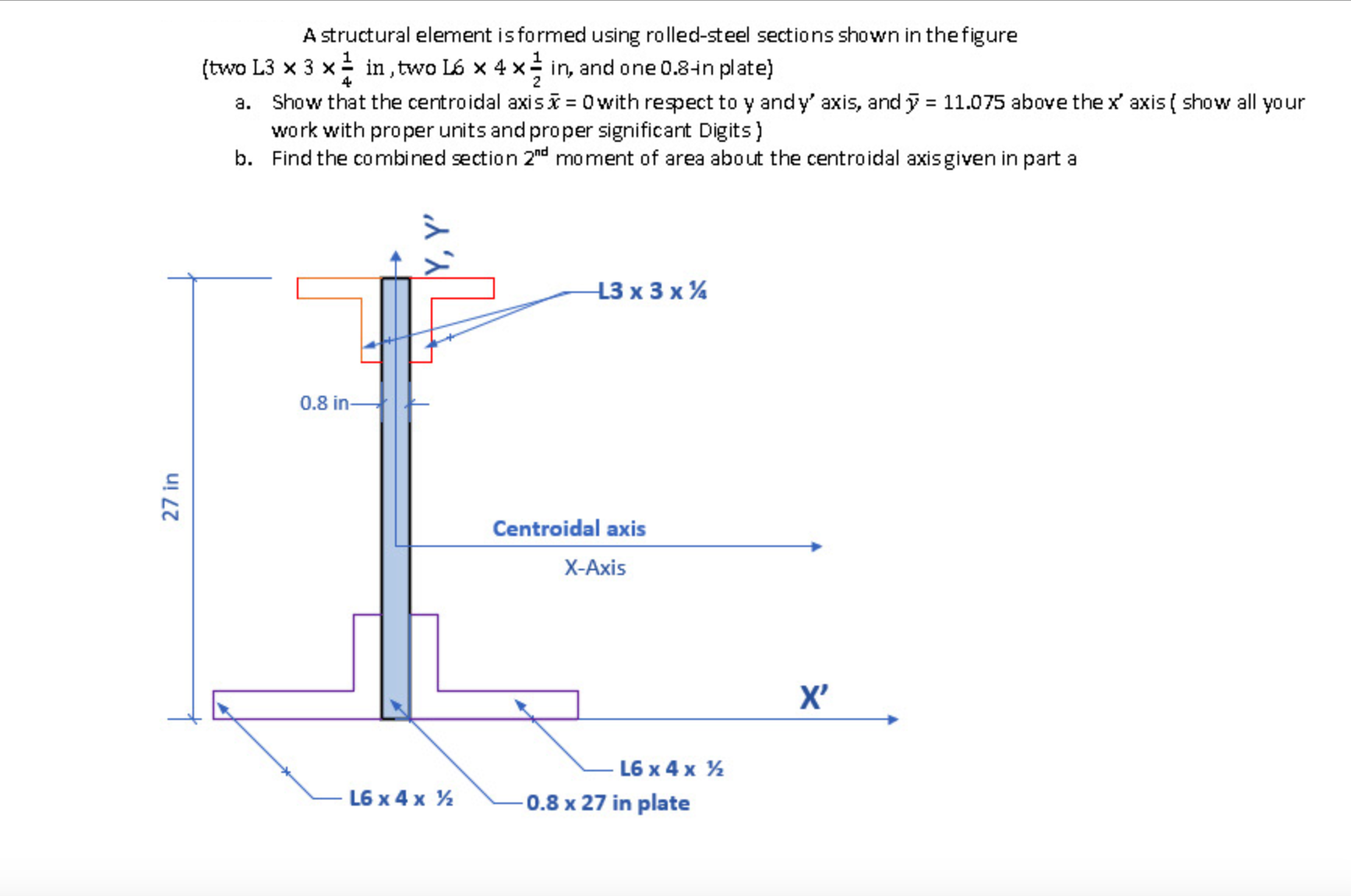

A structural element is formed using rolled-steel sections shown in the figure (two L3314in, two L6412 in, and one 0.8-in plate]
a. Show that the centroidal axis x=0 with respect to y and y' axis, and ?bar(y)=11.075 above the x axis ( show all your work with proper units and proper significant Digits })
b. Find the combined section 2nd moment of area about the centroidal axis given in part a
