Question: A T - beam has following dimensions Web Width ( bw ) = 1 2 inches Effective depth ( d ) = 2 4 inches

A T-beam has following dimensions
Web Width (bw)=12 inches
Effective depth (d)=24 inches
Flange width (bt)=36 inches
Flange thickness (t)=6 inches

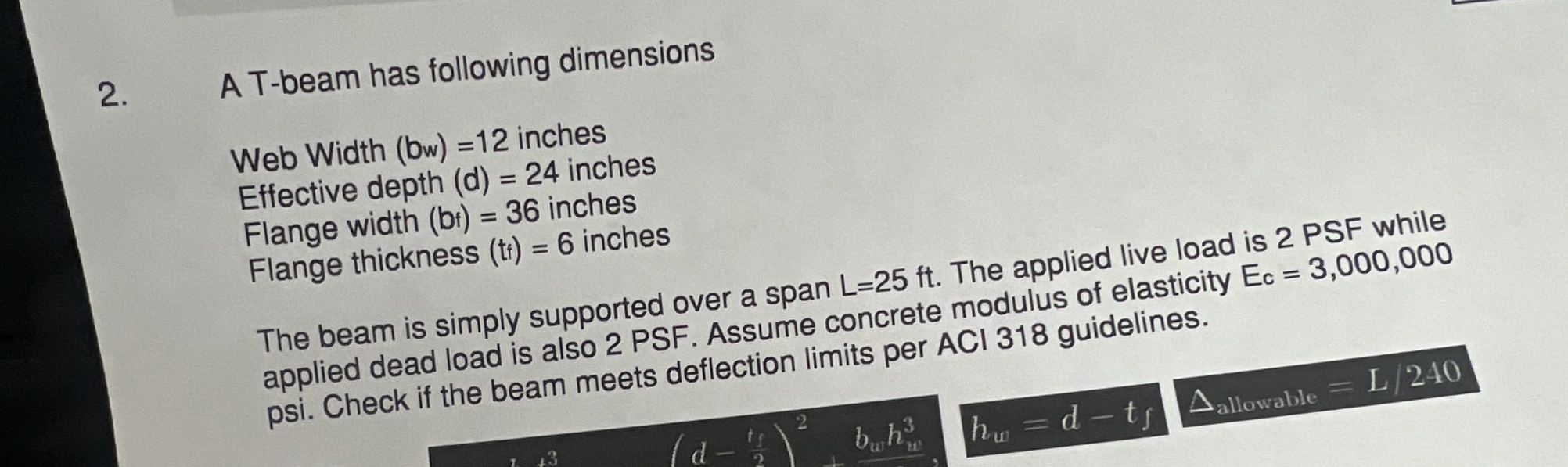

The beam is simply supported over a span L=25ft. The applied live load is 2 PSF while applied dead load is also 2 PSF. Assume concrete modulus of elasticity Ec=3,000,000 psi. Check if the beam meets deflection limits per ACl 318 guidelines.
A T - beam has following dimensions Web Width (

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
