Question: A two - stage speed - reducer gearbox containing a compound reverted gear train transmits 3 5 hp with an input speed of 1 2

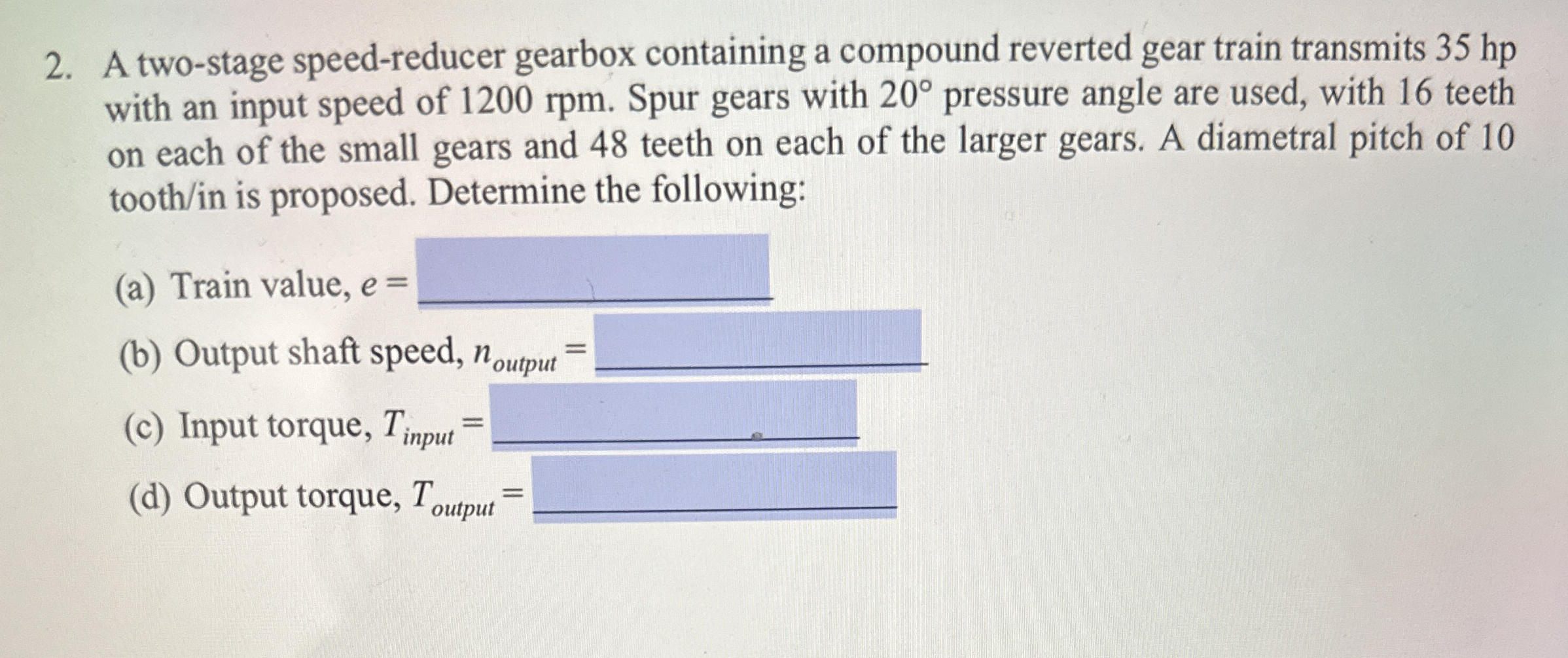

A two-stage speed-reducer gearbox containing a compound reverted gear train transmits 35 hp with an input speed of 1200 rpm . Spur gears with 20 pressure angle are used, with 16 teeth on each of the small gears and 48 teeth on each of the larger gears. A diametral pitch of 10 tooth/in is proposed. Determine the following:
(a) Train value, e=
(b) Output shaft speed, noutput=q,
(c) Input torque, Tinput==.
(d) Output torque, Toutput=
