Question: V . [ total: ( 1 5 % ) ] A gearbox transmits 3 0 kW from a shaft rotating at 5

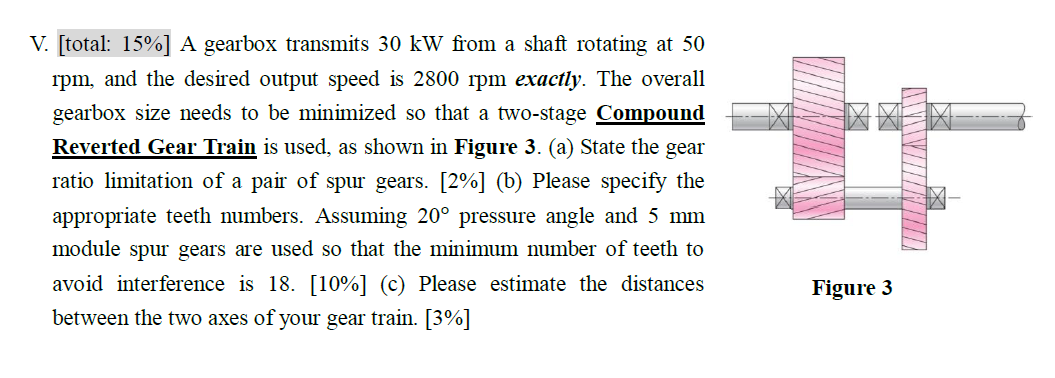

V.[total: \(15\%\)] A gearbox transmits 30 kW from a shaft rotating at 50 rpm, and the desired output speed is 2800 rpm exactly. The overall gearbox size needs to be minimized so that a two-stage Compound Reverted Gear Train is used, as shown in Figure 3.(a) State the gear ratio limitation of a pair of spur gears. [2\%](b) Please specify the appropriate teeth numbers. Assuming \(20^{\circ}\) pressure angle and 5 mm module spur gears are used so that the minimum number of teeth to avoid interference is 18.[10\%](c) Please estimate the distances between the two axes of your gear train. [3\%]
V . [ total: \ ( 1 5 \ % \ ) ] A gearbox
