a) What is the address-length for the cache memory system as shown in Figure 1?

b) Determine the number of bits for Tag, Set and Word for the cache memory system as shown in Figure 1. Draw an address format to explain those bits.

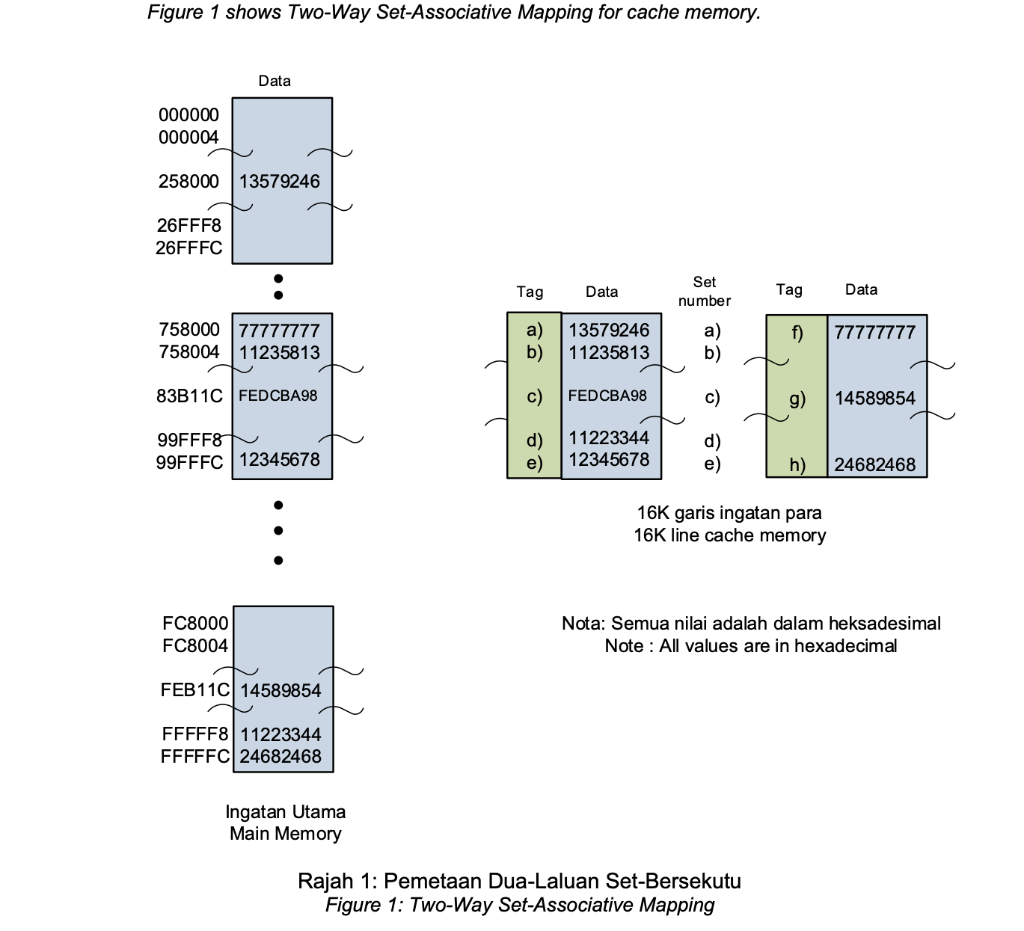

Figure 1 shows Two-Way Set-Associative Mapping for cache memory. Data 000000 000004 258000 13579246 26FFF8 26FFFC : Tag Data Set number Tag Data 758000 77777777 758004 11235813 a) b) 13579246 11235813 f) 77777777 a) b) 83B11C FEDCBA98 C) FED CBA98 c) g) 14589854 99FFF8 99FFFC|12345678 6 11223344 12345678 d) e) e) h) 24682468 16K garis ingatan para 16K line cache memory FC8000 FC8004 Nota: Semua nilai adalah dalam heksadesimal Note: All values are in hexadecimal FEB11C 14589854 FFFFF811223344 FFFFFC 24682468 Ingatan Utama Main Memory Rajah 1: Pemetaan Dua-Laluan Set-Bersekutu Figure 1: Two-Way Set-Associative Mapping
