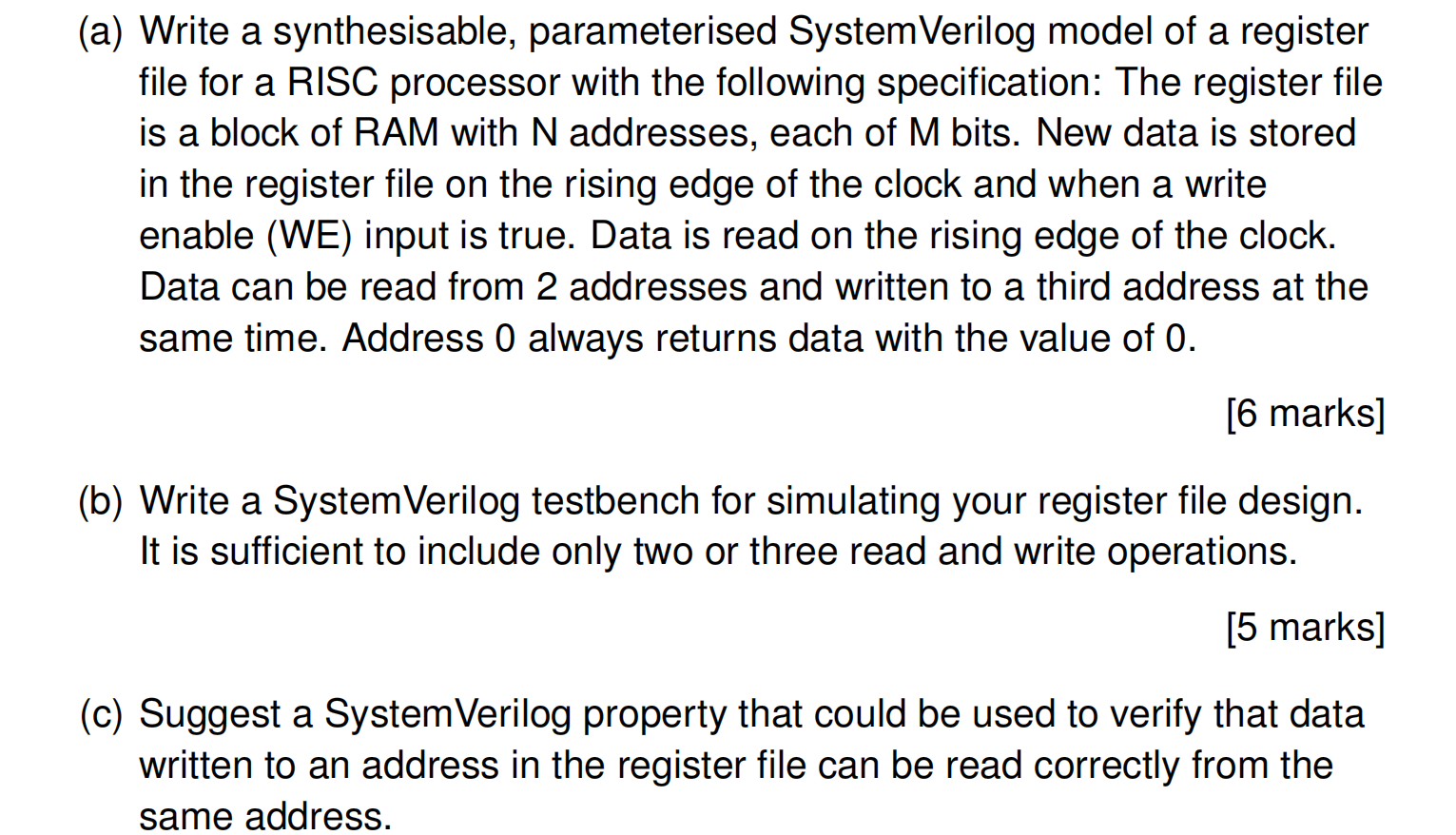

(a) Write a synthesisable, parameterised System Verilog model of a register file for a RISC processor with the following specification: The register file is a block of RAM with Naddresses, each of Mbits. New data is stored in the register file on the rising edge of the clock and when a write enable (WE) input is true. Data is read on the rising edge of the clock. Data can be read from 2 addresses and written to a third address at the same time. Address O always returns data with the value of 0. [6 marks] (b) Write a System Verilog testbench for simulating your register file design. It is sufficient to include only two or three read and write operations. [5 marks] (C) Suggest a System Verilog property that could be used to verify that data written to an address in the register file can be read correctly from the same address
