Question: Activity Description Time Predecessor Build internal components 2 B Modify roof and floor 3 2 Construct Collection slack Pour concrete and install frame D 4

Activity Description Time Predecessor Build

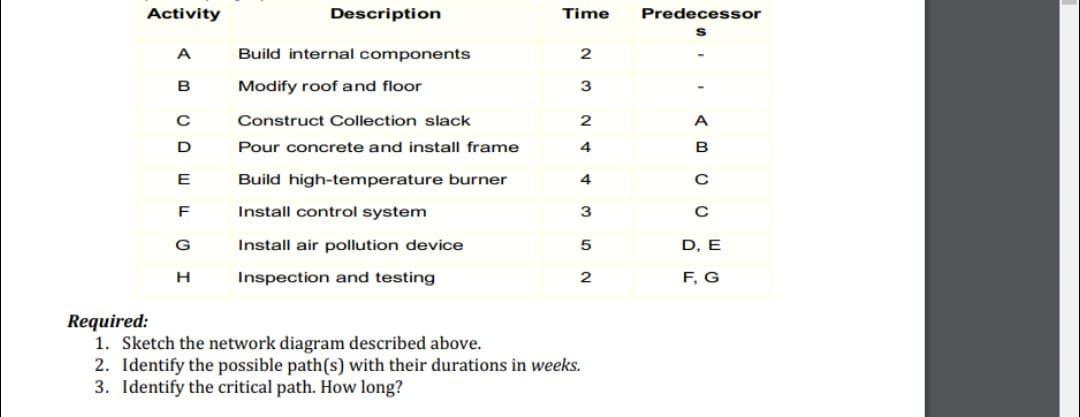

Activity Description Time Predecessor Build internal components 2 B Modify roof and floor 3 2 Construct Collection slack Pour concrete and install frame D 4 B E Build high-temperature burner 4 C F Install control system 3 G Install air pollution device 5 D, E H Inspection and testing 2 F G Required: 1. Sketch the network diagram described above. 2. Identify the possible path(s) with their durations in weeks. 3. Identify the critical path. How long

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
