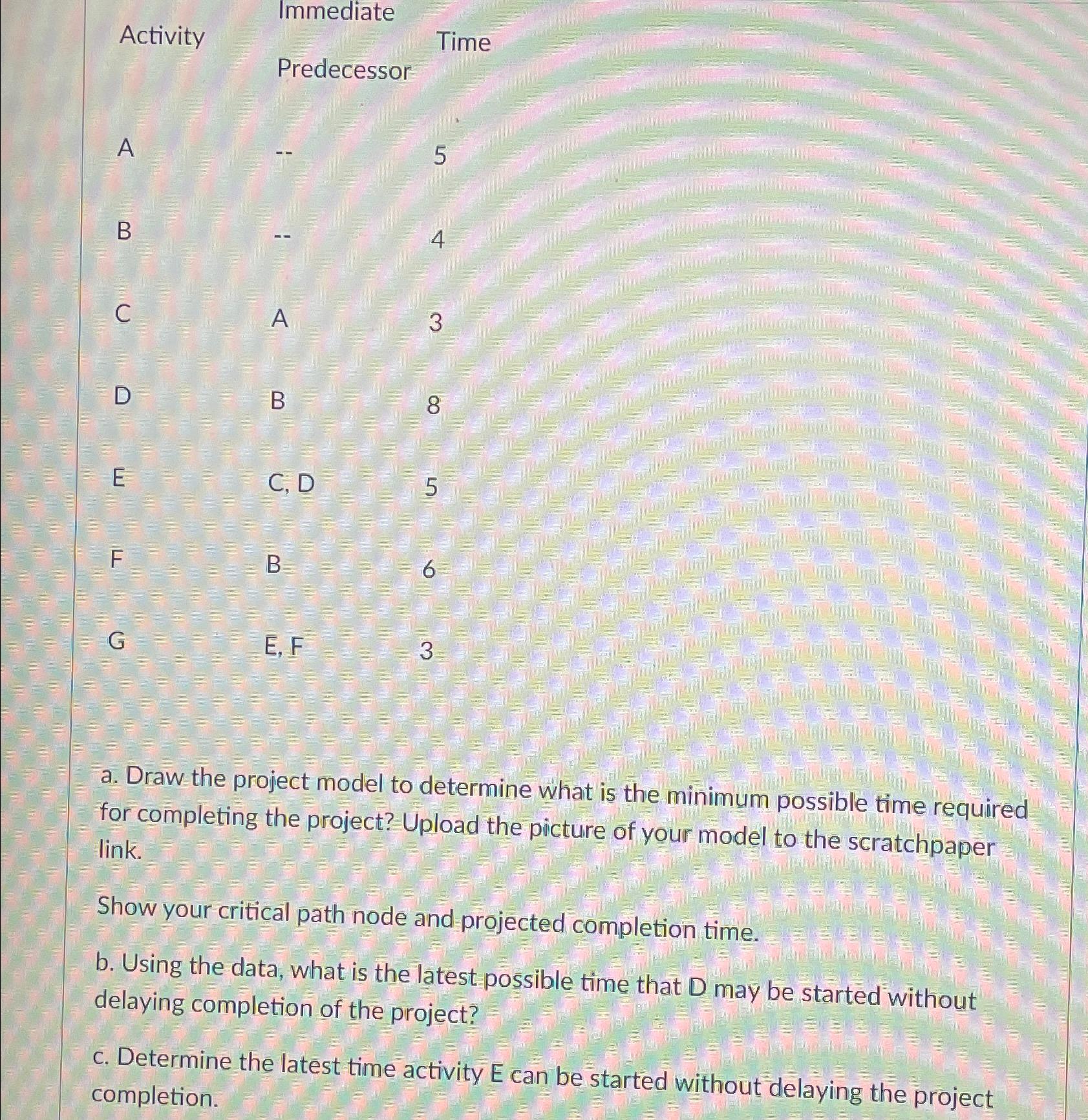

Activity

Immediate

Predecessor

Time

A

$5$

B

$4$

C

A

$3$

D

B

$8$

E

C$,$ D

$5$

F

B

$6$

G

$E,F$

$3$

a$.$ Draw the project model to determine what is the minimum possible time required for completing the project? Upload the picture of your model to the scratchpaper link.

Show your critical path node and projected completion time.

b$.$ Using the data, what is the latest possible time that $D$ may be started without delaying completion of the project?

c$.$ Determine the latest time activity $E$ can be started without delaying the project completion.
