Activity	Immediate Predecessor(s)	Duration (days)
A	----	5
B	A	2
C	A	4
D	C,B	1
E	C,B	6
F	B	2
G	D,E	3
H	F,G	4

1) Based on the above table, draw an ****AOA**** network.

2) List ALL paths and identify the critical path(s).

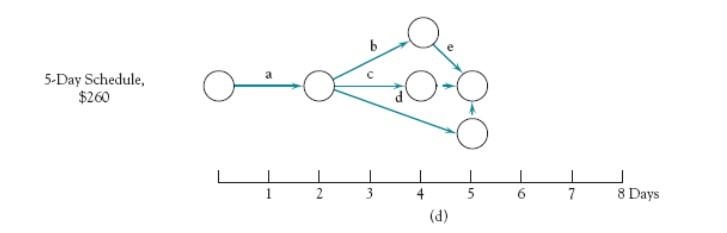

******Please make sure it is in the SAME format as the image I have attached--Activities on arrows not inside the bubble, like the image..*****

***THIS IS AN "ACTIVITY ON ARROW" (AOA) NETWORK. PLEASE DO NOT DRAW AN "ACTIVITY ON NODE" (AON) NETWORK*** THANK YOU!!!!

5-Day Schedule, $260 O- 1 2. 2 3 5 6 6 7 8 Days w 4 (d)
