Question: Activity Immediate Predecessor(s) Duration (days) A ---- 5 B A 2 C A 4 D C,B 1 E C,B 6 F B 2 G D,E

Activity

Immediate Predecessor(s)

Duration (days)

A

----

5

B

A

2

C

A

4

D

C,B

1

E

C,B

6

F

B

2

G

D,E

3

H

F,G

4

1) Based on the above table, draw an AOA network.

2) List ALL paths and identify the critical path(s).

******Please make sure it is in the SAME format as the image I have attached.*****Activity Immediate Predecessor(s) Duration (days)

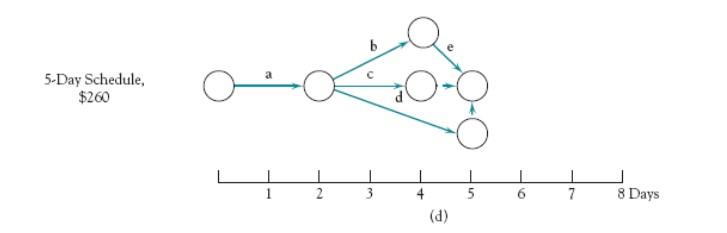

5-Day Schedule, $260 O- 1 2. 2 3 5 6 6 7 8 Days w 4 (d)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!
