Question: Activity Preceding Activity Duration (weeks) Resource A d, c 3 1 B e, f 6 7 E 2 2 D 7 5 E 1 2

Activity Preceding Activity Duration (weeks)

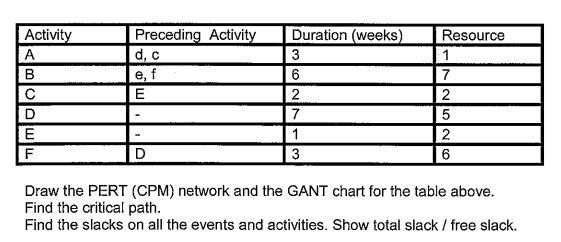

Activity Preceding Activity Duration (weeks) Resource A d, c 3 1 B e, f 6 7 E 2 2 D 7 5 E 1 2 F 3 6 Draw the PERT (CPM) network and the GANT chart for the table above. Find the critical path. Find the slacks on all the events and activities. Show total slack / free slack

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
