Question: Add FBD if needed plz -lace horizontal surface. Initially, ... A slender rod of length L is lodged betweenpeg C and the vertical wall and

Add FBD if needed plz

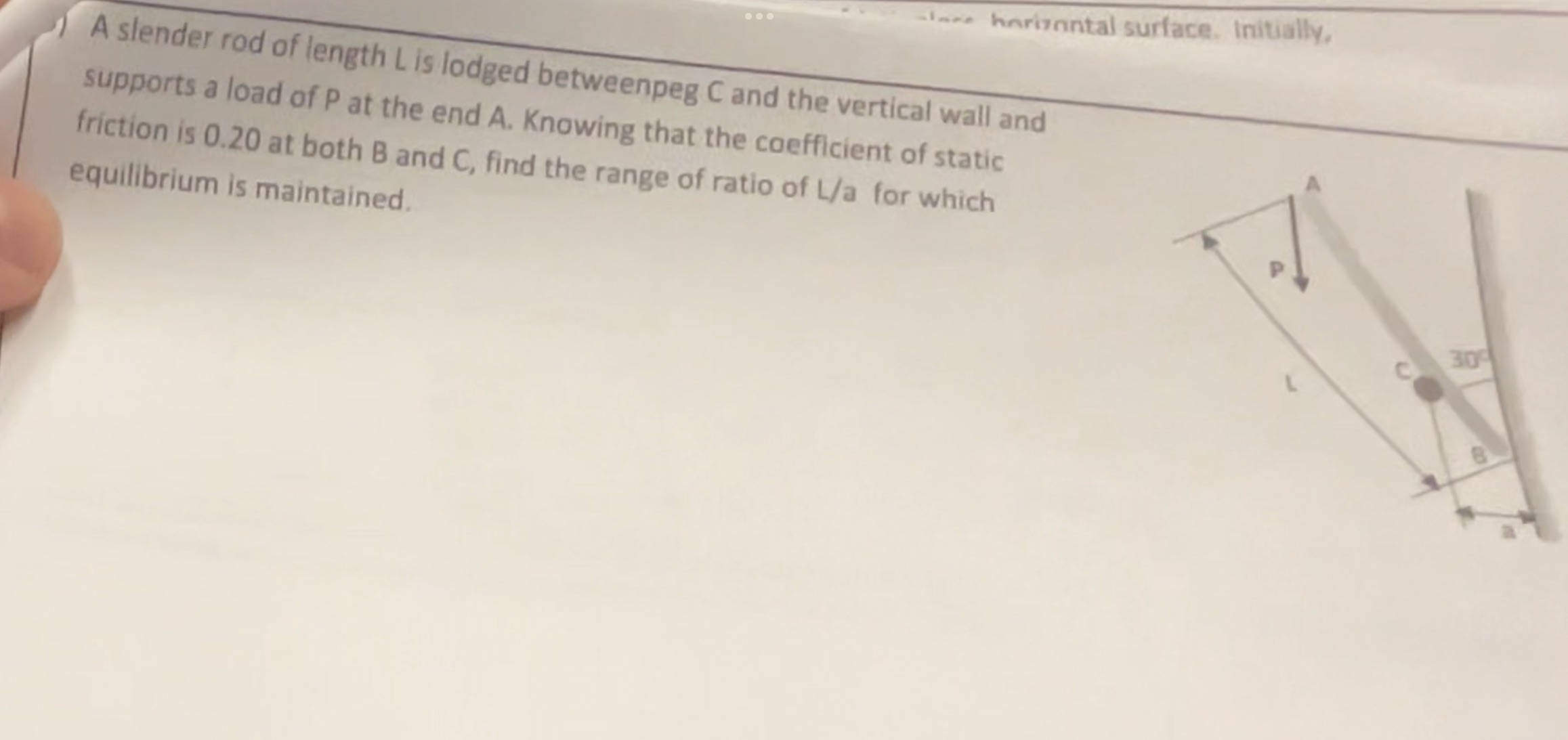

-lace horizontal surface. Initially, ... A slender rod of length L is lodged betweenpeg C and the vertical wall and supports a load of P at the end A. Knowing that the coefficient of static friction is 0.20 at both B and C, find the range of ratio of L/a for which equilibrium is maintained. C 8

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
