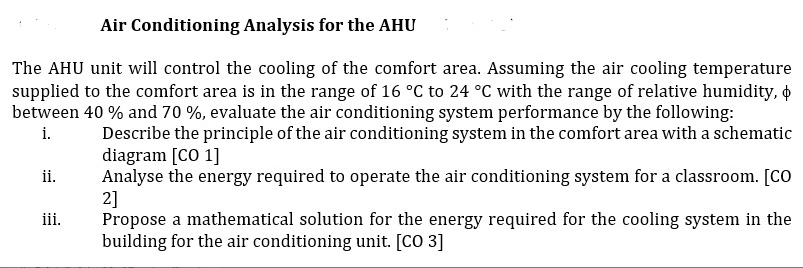

Air Conditioning Analysis for the AHU

The AHU unit will control the cooling of the comfort area. Assuming the air cooling temperature

supplied to the comfort area is in the range of $16C$ to $24C$ with the range of relative humidity, $$

between $40\%$ and $70\%,$ evaluate the air conditioning system performance by the following:

i$.,$ Describe the principle of the air conditioning system in the comfort area with a schematic

diagram $[$CO $1]$

ii$.$ Analyse the energy required to operate the air conditioning system for a classroom. $[$CO

$2]$

iii. Propose a mathematical solution for the energy required for the cooling system in the

building for the air conditioning unit. $[\{$:$[CO,3]]$
