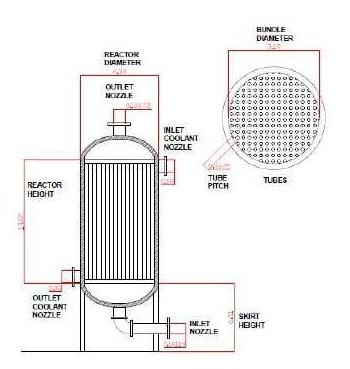

An $$autocad $$assignment$.$ Refer $$the $2$D Pack bed reactor In the image below and do a $3$D autocad drawing $$with $$dimensions$.$Provide $$me $$the $$file $$in $$dwg $$format $$or $$send me the picture of the final autocad drawing. Please don't attempt to answer without any autocad drawing. Since the dimensions are not clear in the picture i will stating the dimensions below.Thank you.

Dimensions:

Reactor diameter $=4\mathrm{.}34$ metre

Outlet nozzle $=0\mathrm{.}10272$ metre

Inlet coolant nozzle $=0\mathrm{.}08$ metre

Reactor height $=13\mathrm{.}02$ metre

Outlet coolant nozzle height $=0\mathrm{.}08$ metre

Inlet nozzle $=0\mathrm{.}10119$ metre

Bundle diameter $=3\mathrm{.}19$ metre

Tube pitch $=0\mathrm{.}11625$ metre

Tube diameter $=0\mathrm{.}05$ metre
