Question: Analyze the floor plan shown below if Deadload = 1 0 psf and Liveload = 4 0 psf . Find Reaction RI for Girder 3

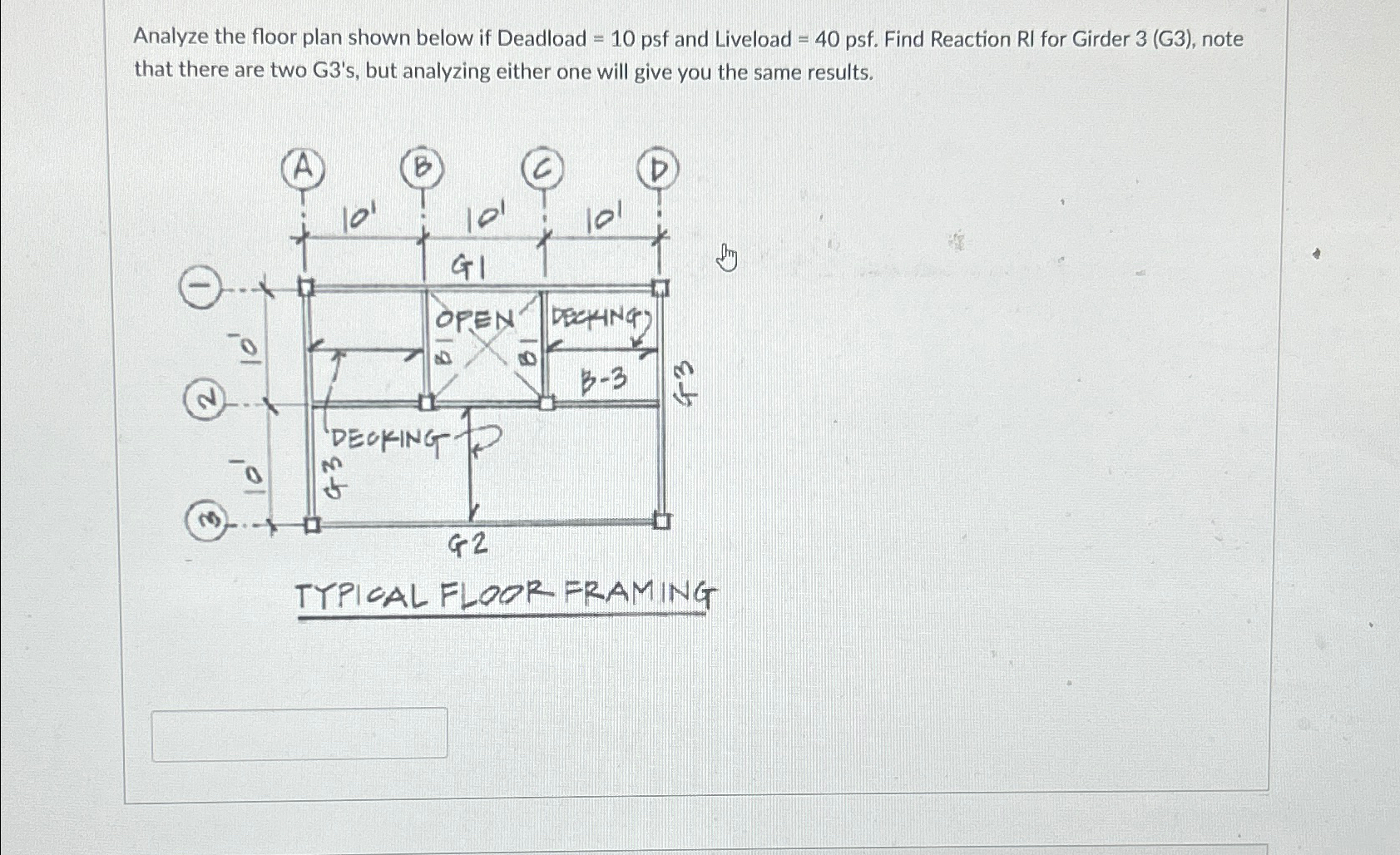

Analyze the floor plan shown below if Deadload =10 psf and Liveload =40 psf. Find Reaction RI for Girder 3(G3), note that there are two G3's, but analyzing either one will give you the same results.
Analyze the floor plan shown below if Deadload =

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
