Question: Analyze the given circuit and determine the minimum and maximum Zener Current. Draw the out of the given circuits for all the three inputs as

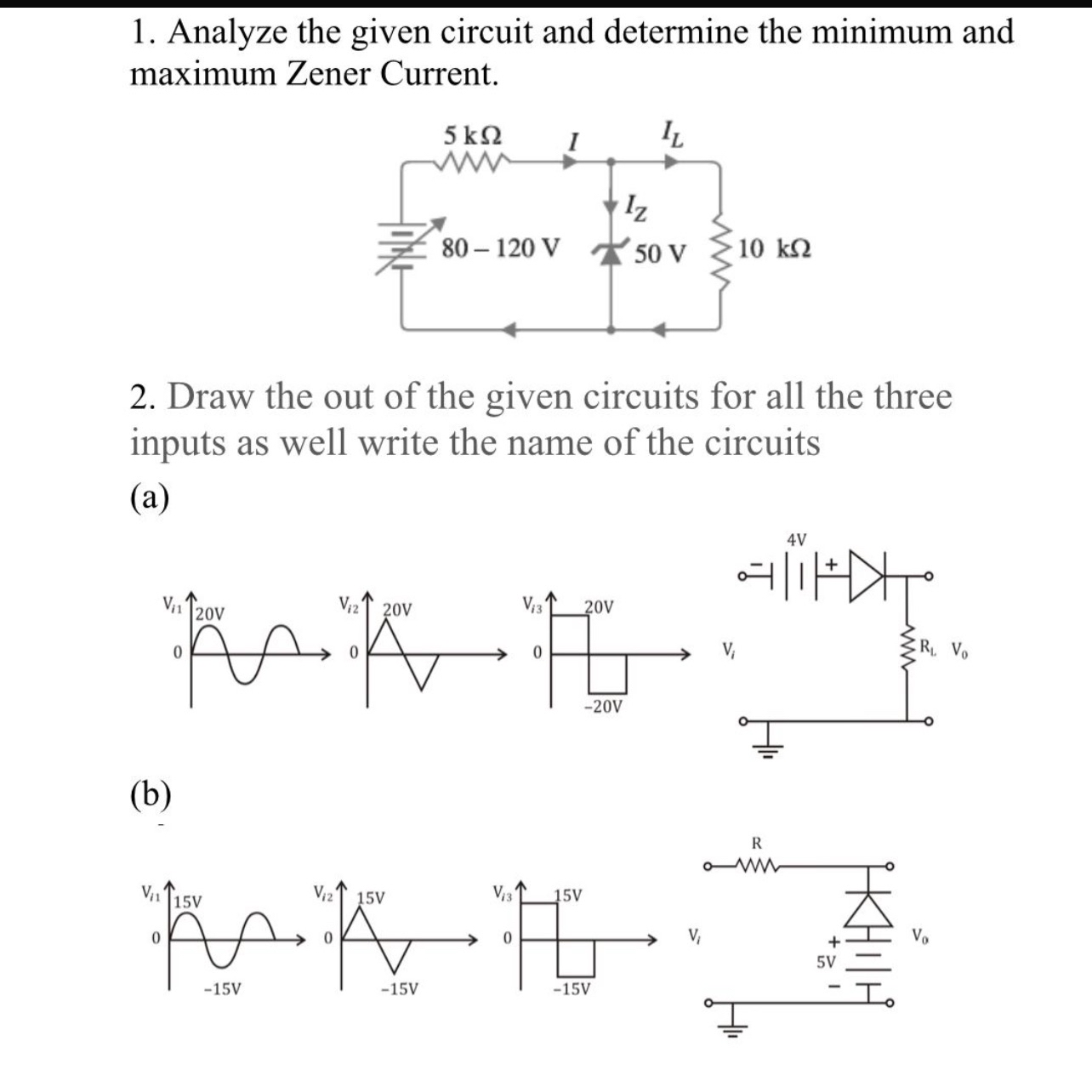

Analyze the given circuit and determine the minimum and maximum Zener Current.
Draw the out of the given circuits for all the three inputs as well write the name of the circuits
(a)
(b)
Analyze the given circuit and determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
