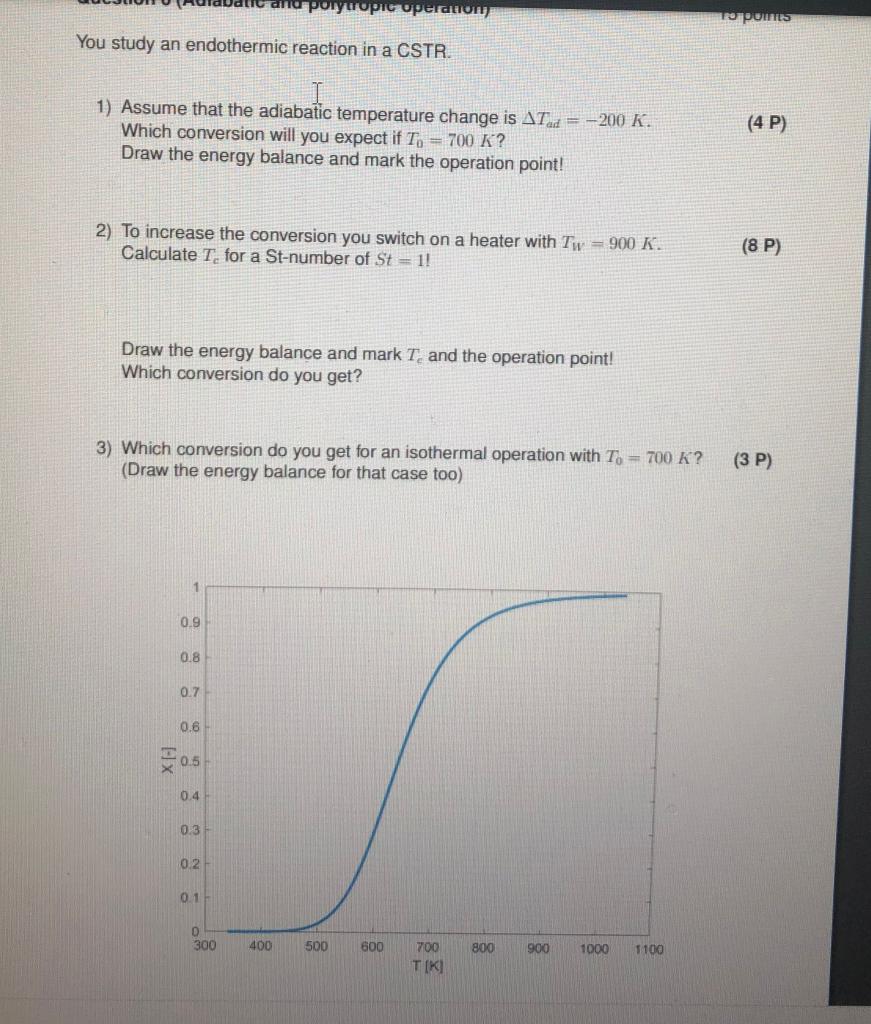

ane polytropic operation e points You study an endothermic reaction in a CSTR. 1) Assume that the adiabatic temperature change is Arad = 200 K. Which conversion will you expect if To = 700 K? Draw the energy balance and mark the operation point! (4 P) 2) To increase the conversion you switch on a heater with Tw = 900 K. Calculate T for a St-number of St = 1! (8P) Draw the energy balance and mark T. and the operation point! Which conversion do you get? 3) Which conversion do you get for an isothermal operation with T. = 700 K? (Draw the energy balance for that case too) (3 P) 1 0.9 0.8 0.7 0.6 0.5 x 0.4 0.3 0.2 0.1 0 300 400 500 600 800 900 1000 1100 700 T[K]
