Answer: $,R_L=,P_L=$

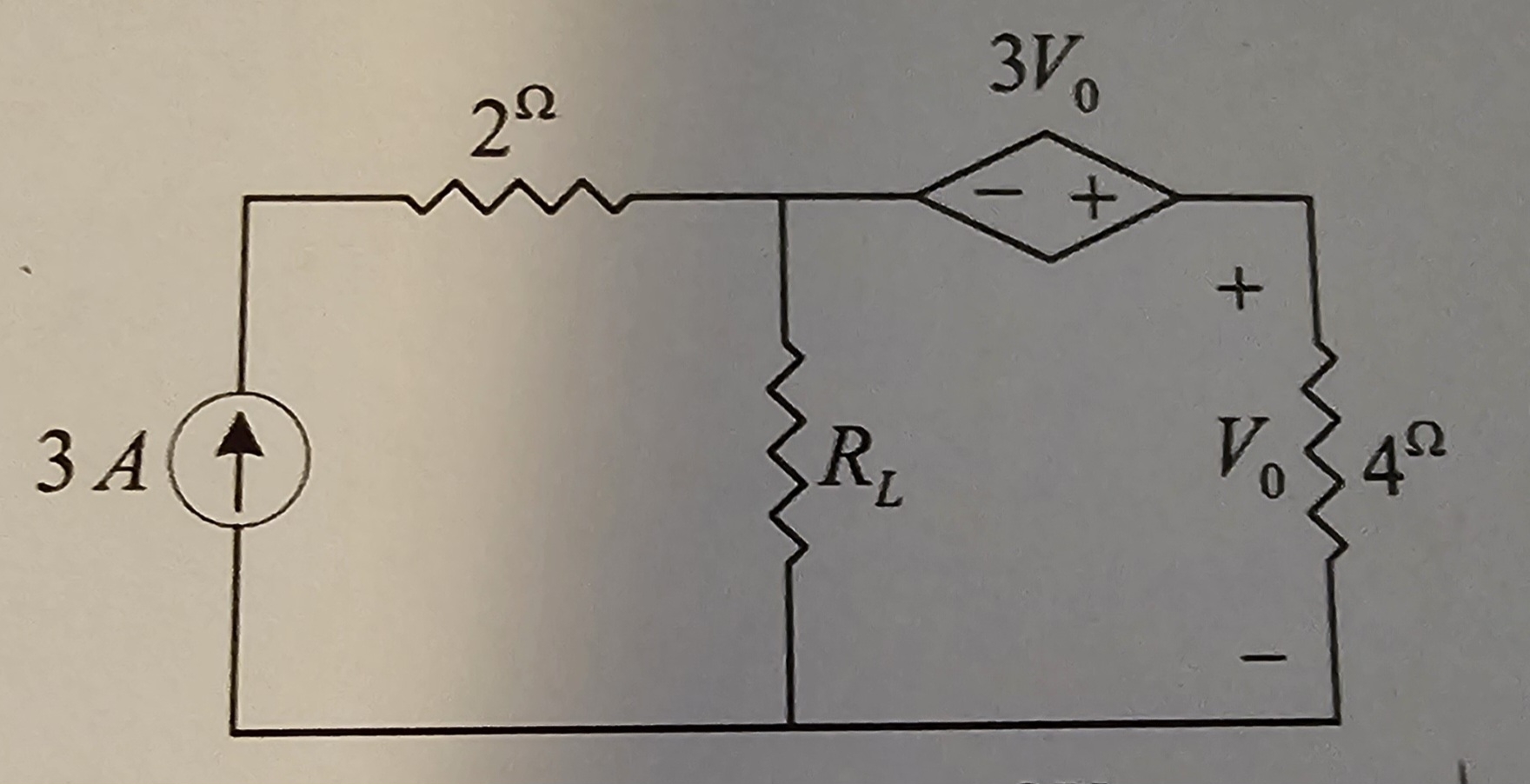

Problem$1$: In the following circuit find $R_L$ for maximum power transfer and the power transferred.

The circuit you will be asked to solve will consist of five elements;

a $2$ ohm resistor,

a $4$ ohm resistor with voltage $V_0$ across it$,$

An independent $3$ amp current source,

a voltage dependent voltage source with voltage of $3V_0,$ and

a load with resistance $R_L.$

A few example of such a circuit is given in the next page.

$3$ A$(2$RL$3$V$,+40$
