answer the question with clear steps please and answer all the question parts,

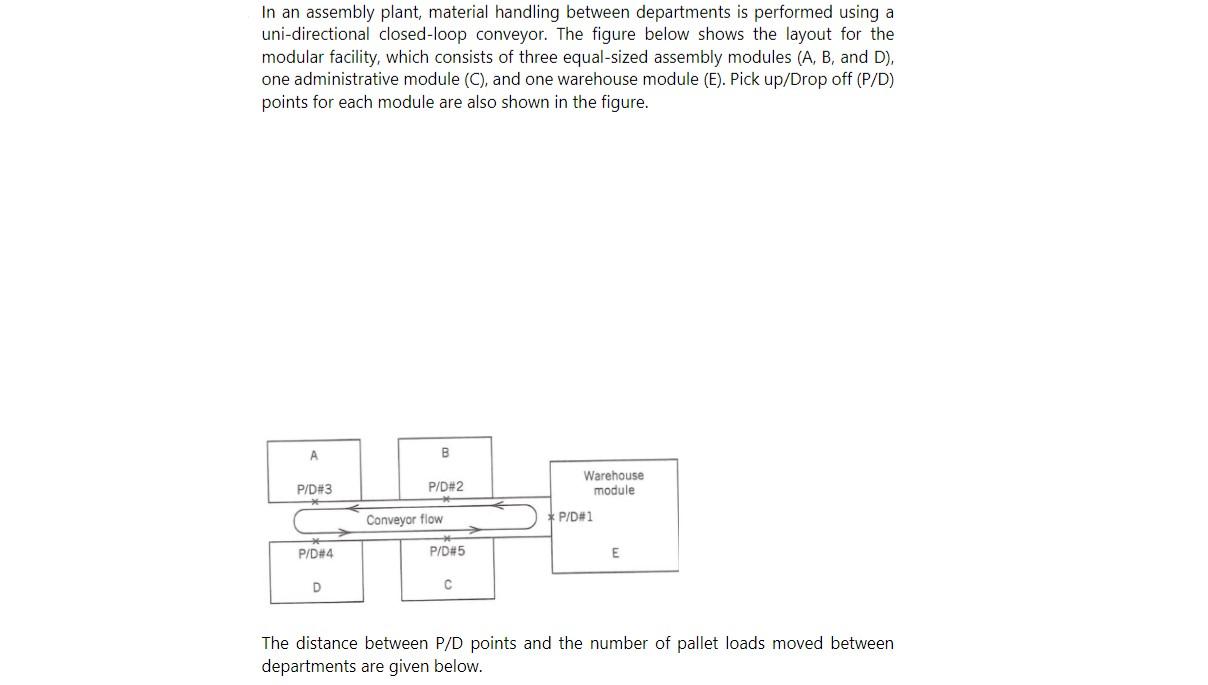

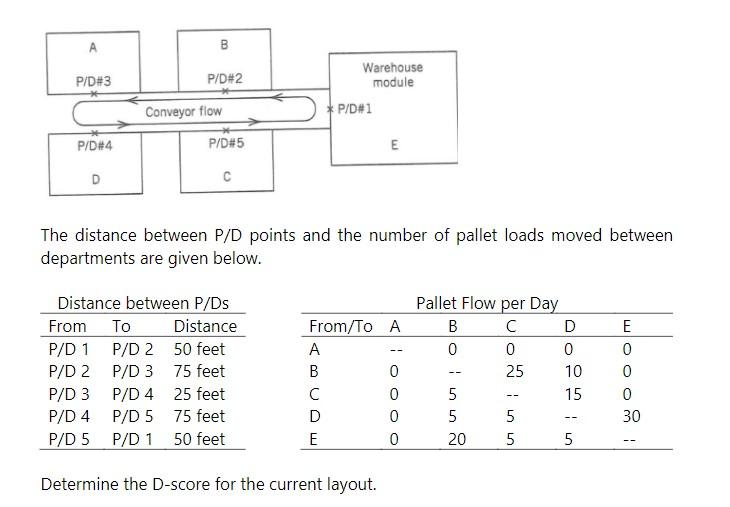

In an assembly plant, material handling between departments is performed using a uni-directional closed-loop conveyor. The figure below shows the layout for the modular facility, which consists of three equal-sized assembly modules (A, B, and D). one administrative module (C), and one warehouse module (E). Pick up/Drop off (P/D) points for each module are also shown in the figure. B P/D#3 P/D#2 Warehouse module Conveyor flow *P/D#1 P/D#4 P/D#5 E D The distance between P/D points and the number of pallet loads moved between departments are given below. B P/D#3 P/D#2 Warehouse module P/D#1 Conveyor flow P/D#4 P/D#5 E D The distance between P/D points and the number of pallet loads moved between departments are given below. Distance between P/Ds From Distance P/D 1 P/D 2 50 feet P/D 2 P/D 3 75 feet P/D 3 P/D4 25 feet P/D 4 P/D 5 75 feet P/D 5 P/D1 50 feet From/to A A B 0 C 0 D 0 E 0 Pallet Flow per Day B C D 0 0 0 25 10 5 15 5 5 5 5 E 0 0 0 30 20 Determine the D-score for the current layout
