Question: aren't BE , BG , CG , and CF zero - force members? 2 . ( 2 5 pts ) Determine the horizontal movement of

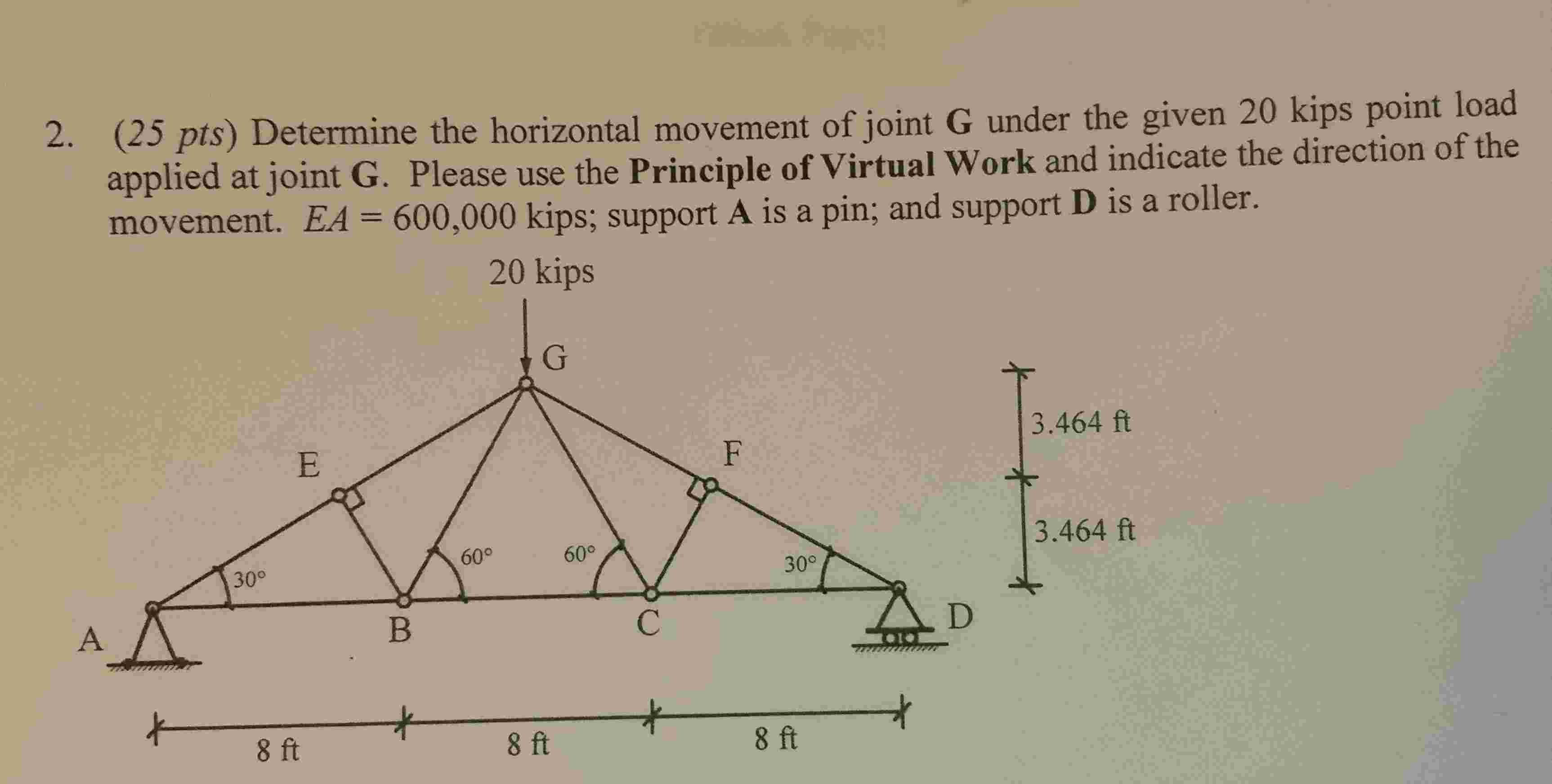

aren't BE, BG, CG, and CF zero-force members? 2.(25 pts) Determine the horizontal movement of joint \(\mathbf{G}\) under the given 20 kips point load applied at joint G. Please use the Principle of Virtual Work and indicate the direction of the movement. \( E A=600,000\) kips; support \(\mathbf{A}\) is a pin; and support \(\mathbf{D}\) is a roller.
aren't BE , BG , CG , and CF zero - force

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
