Question: Assignment 1 Write a program for the milling operation shown in Figure 1 . Use the CNC tool and operations sheet given shown in Table

Assignment 1

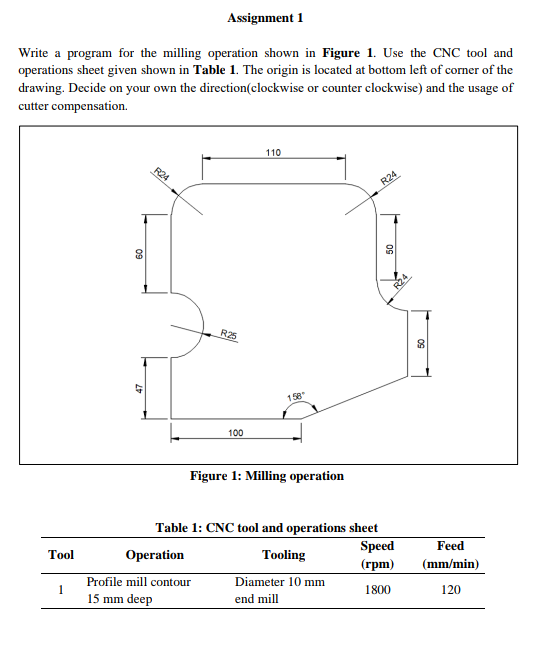

Write a program for the milling operation shown in Figure 1. Use the CNC tool and operations sheet given shown in Table 1. The origin is located at bottom left of corner of the drawing. Decide on your own the direction(clockwise or counter clockwise) and the usage of cutter compensation.
Figure 1: Milling operation
Table 1: CNC tool and operations sheet
\table[[Tool,Operation,Tooling,\table[[Speed],[(rpm)]],\table[[Feed],[(mmmin)
Assignment 1 Write a program for the milling

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
