Question: Assignment ( 2 ) A multiplier is to be designed which multiply two binary numbers: N 1 is a 3 - bit binary ( a

Assignment
(2)

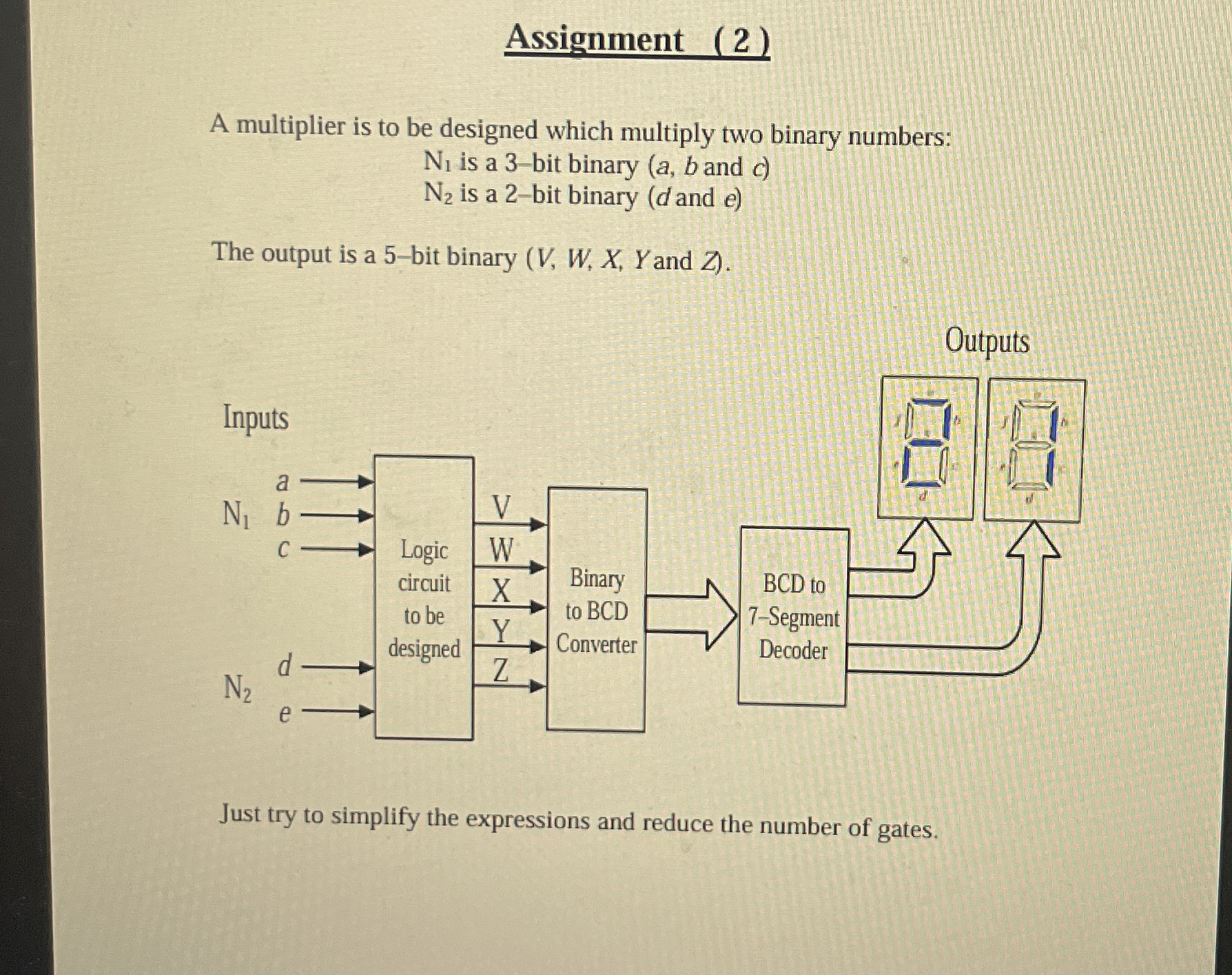

A multiplier is to be designed which multiply two binary numbers:
N1 is a 3-bit binary (a,b and c)
N2 is a 2-bit binary (d and e)
The output is a 5-bit binary and Z).
Just try to simplify the expressions and reduce the number of gates.
Assignment (2) A multiplier is to be designed which multiply two

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
