Question: B 2 . As shown in the above schematic, two bars AB and BC are connected to a flywheel at point C . The flywheel

B2.

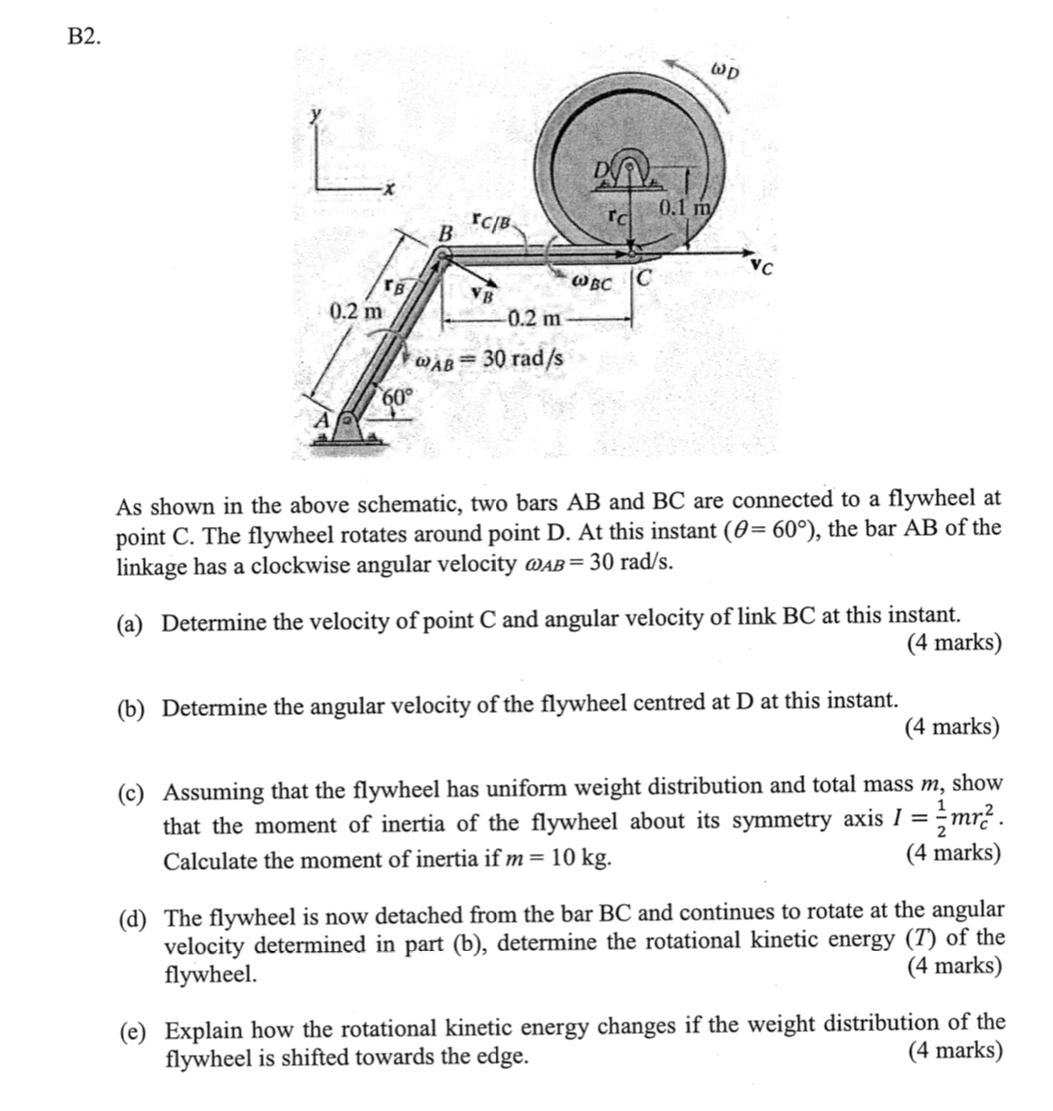

As shown in the above schematic, two bars AB and BC are connected to a flywheel at point C. The flywheel rotates around point D . At this instant
B 2 . As shown in the above schematic, two bars

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
