Question: b ) For the system given below, find out how many poles are in the left half plane, in the right half plane, and on

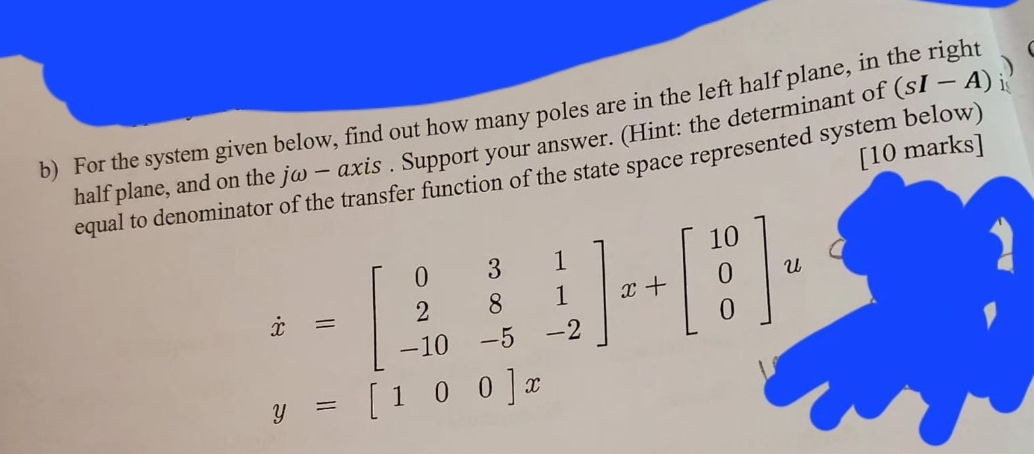

b) For the system given below, find out how many poles are in the left half plane, in the right half plane, and on the j-axis. Support your answer. (Hint: the determinant of (sI-A) i) equal to denominator of the transfer function of the state space represented system below)
[10 marks]
b ) For the system given below, find out how many

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
