Question: (b) In the circuit below, the switch is initially connected to a and the circuit is in a steady state. At / = 0, the

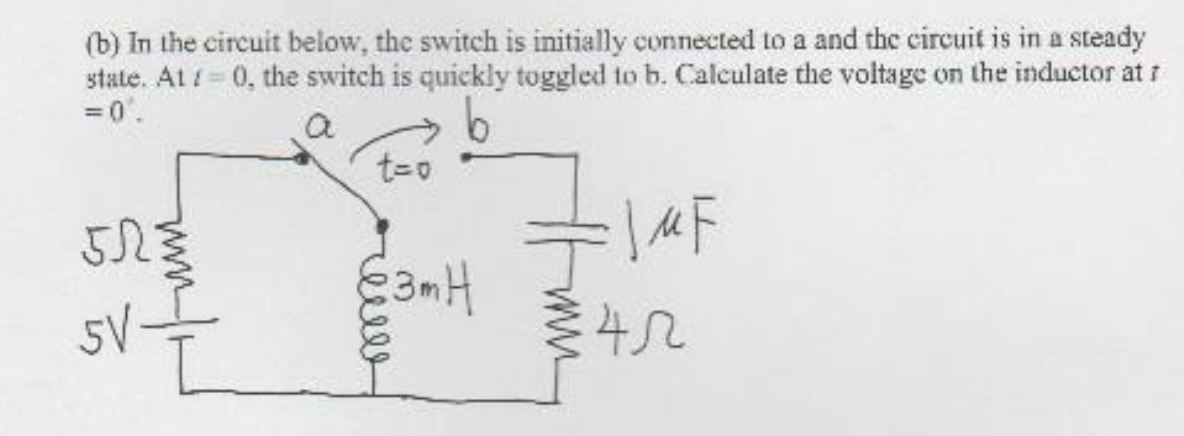

(b) In the circuit below, the switch is initially connected to a and the circuit is in a steady state. At / = 0, the switch is quickly toggled to b. Calculate the voltage on the inductor at =0 . a t=0 3 m H 5V 41

Step by Step Solution
