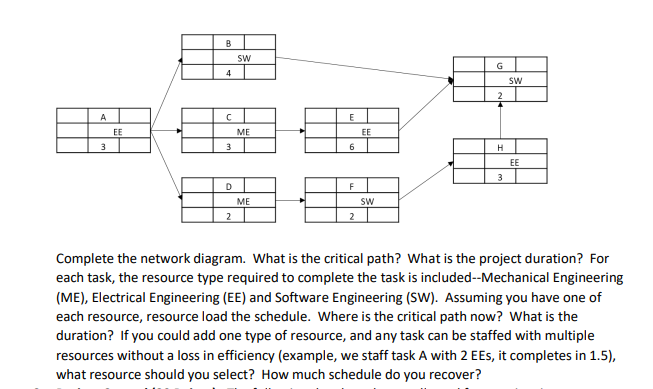

B SW 4 G SW 2. A E EE C ME 3 EE 3 6 H EE 3 F D ME 2 SW 2 Complete the network diagram. What is the critical path? What is the project duration? For each task, the resource type required to complete the task is included--Mechanical Engineering (ME), Electrical Engineering (EE) and Software Engineering (SW). Assuming you have one of each resource, resource load the schedule. Where is the critical path now? What is the duration? If you could add one type of resource, and any task can be staffed with multiple resources without a loss in efficiency (example, we staff task A with 2 EEs, it completes in 1.5), what resource should you select? How much schedule do you recover? W B SW 4 G SW 2. A E EE C ME 3 EE 3 6 H EE 3 F D ME 2 SW 2 Complete the network diagram. What is the critical path? What is the project duration? For each task, the resource type required to complete the task is included--Mechanical Engineering (ME), Electrical Engineering (EE) and Software Engineering (SW). Assuming you have one of each resource, resource load the schedule. Where is the critical path now? What is the duration? If you could add one type of resource, and any task can be staffed with multiple resources without a loss in efficiency (example, we staff task A with 2 EEs, it completes in 1.5), what resource should you select? How much schedule do you recover? W
