Question: ( b ) The cable shown in Figure Q 3 B has two point loads applied downward at B and C . You are to

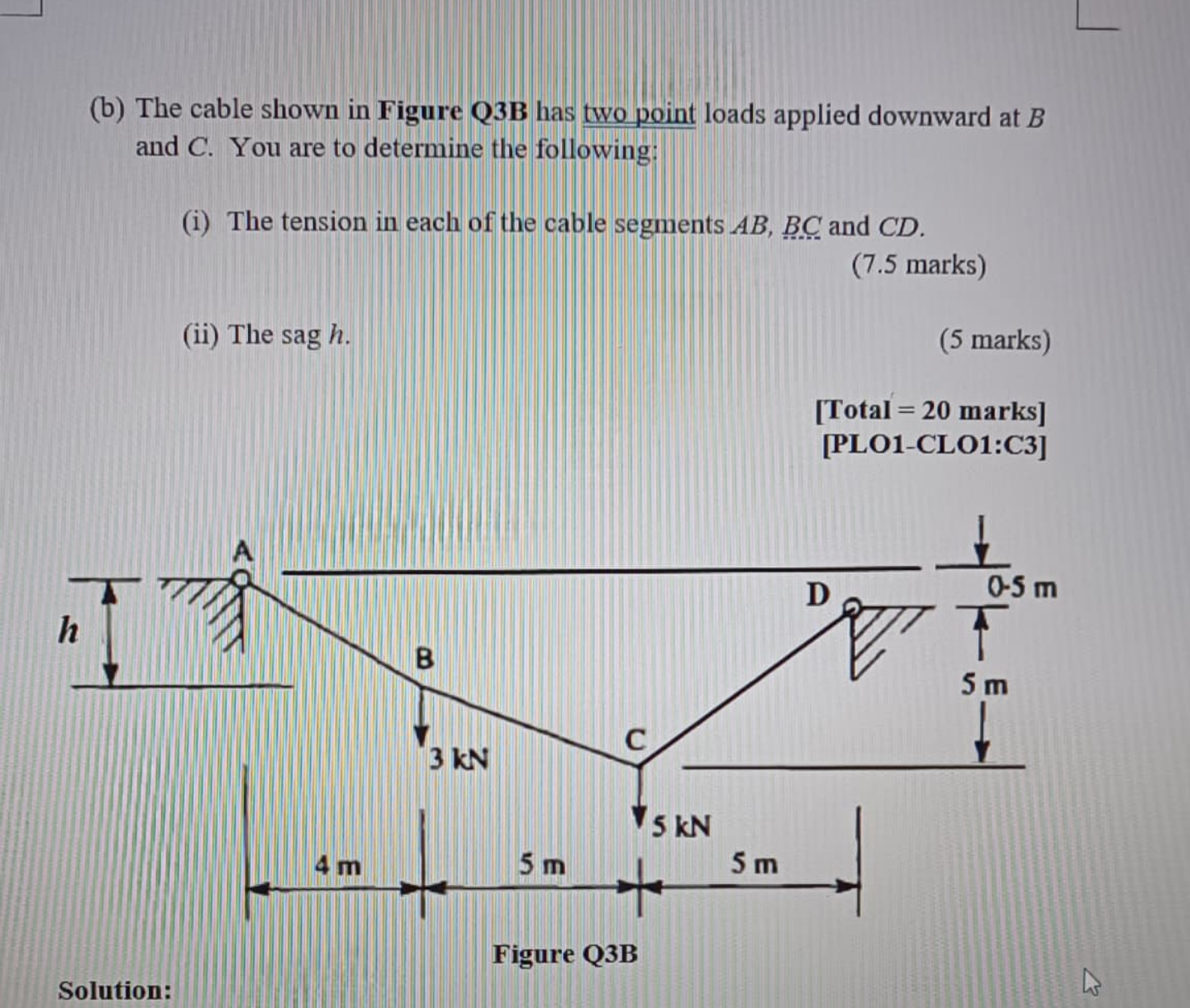

(b) The cable shown in Figure Q3B has two point loads applied downward at B
and C. You are to determine the following:
(i) The tension in each of the cable segments AB,BC and CD.
(ii) The sag h.
( please i want the solution to be started from joint C )
