Question: b. Write the critical path and calculate the expected duration and standard variance of the critical path. d. Draw the Gantt Chart for this problem.

b. Write the critical path and calculate the

b. Write the critical path and calculate the expected duration and standard variance of the critical path.

d. Draw the Gantt Chart for this problem.

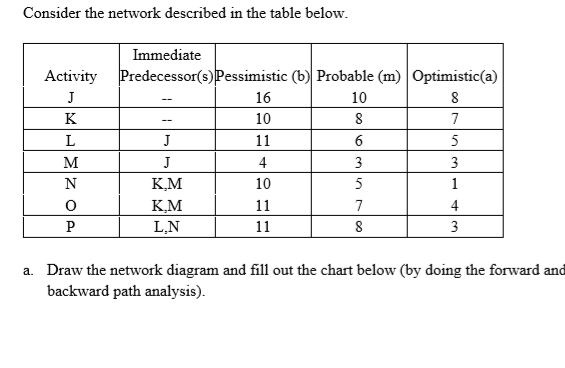

Consider the network described in the table below. Activity J K Immediate Predecessor(s)Pessimistic (b) Probable (m) Optimistica) 16 10 8 10 8 7 11 6 5 4 3 3 . 10 5 KM 11 4 L.N 11 8 3 J ZKF J mlin 0 P a. Draw the network diagram and fill out the chart below (by doing the forward and backward path analysis)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

Consider the network described in the table below. Activity J K L M N o Immediate Predecessor(s) Pessimistic 19 9 J 10 J 3 KM 9 KM 10 LN 12 Optimistic 4 7 5 3 1 4 3 Probable 10 8 6 3 5 7 8 a. Draw...

Consider the network described in the table below. Optimistic 4 Immediate Activity Predecessor(s) Pessimistic J 19 K 9 L J 10 M J 3 N KM 9 O KM 10 P LN 10 7 5 Probable 10 8 6 3 5 7 8 3 1 4 3 a. Draw...

PLz solve part and b Expected Time Variance Task Early Start Early Finish Late Start Late Finish Slack Time b. Write the critical path and calculate the expected duration and standard variance of the...

1. Draw the network diagram and fill out the chart below (by doing the forward and backward path analysis). Task Expected Early Variance Time Start Early Finish Late Start Late Finish Slack Time | L...

D Consider the network described in the table below. Activity Immediate Pessimistic Predecessors) Optimistic Probable 15 18 10 K 19 17 B L 10 15 16 M 13 3 3 IN | KM 19 1 10 KM 10 14 7 IP ILN 10 3 1....

One of the process code time O 50% of the process cycle time Consider the network described in the table below. Activity Immediate Pessimistic Predecessors) Optimistic Probable 15 10 10 M M 13 N KM...

pleaae sumbit asap ! will give thumbs up Activity Immediate Pessimistic Optimistic Predecessor(s) Probable J 15 8 10 K 9 7 8 L J 10 5 6 M ) 2 3 N KM 9 1 5 KM 11 3 7 P LN 11 2 8 B 1. Draw the network...

Asap! will give thumbs up if correct! Consider the network described in the table below. Immediate Activity Pessimistic Optimistic Probable Predecessor(s) 15 8 10 IK 9 8 L J 10 5 6 M 3 3 3 N IK.M ON...

Consider the network described in the table below. Activity Immediate Pessimistic Predecessor(s) Optimistic Probable 15 8 10 K 9 8 10 5 6 M 3 3 3 N KM 5 O KM 10 LN 10 8 1. Draw the network diagram...

Consider the network described in the table below. Activity Immediate Predecessor(s) Pessimistic Optimistic Probable J -- 15 8 10 K -- 9 7 8 L J 10 5 6 M J 4 2 3 N K,M 9 1 5 O K,M 11 3 7 P L,N 11 2 8...
