Question: BCN 4 4 3 1 - STRUCTURES - 1 HW ASSIGNMENT# 1 Draw the shear and moment diagrams for the loading condition shown. Show maximum

BCN

4431 -

STRUCTURES

- 1

HW ASSIGNMENT#

1

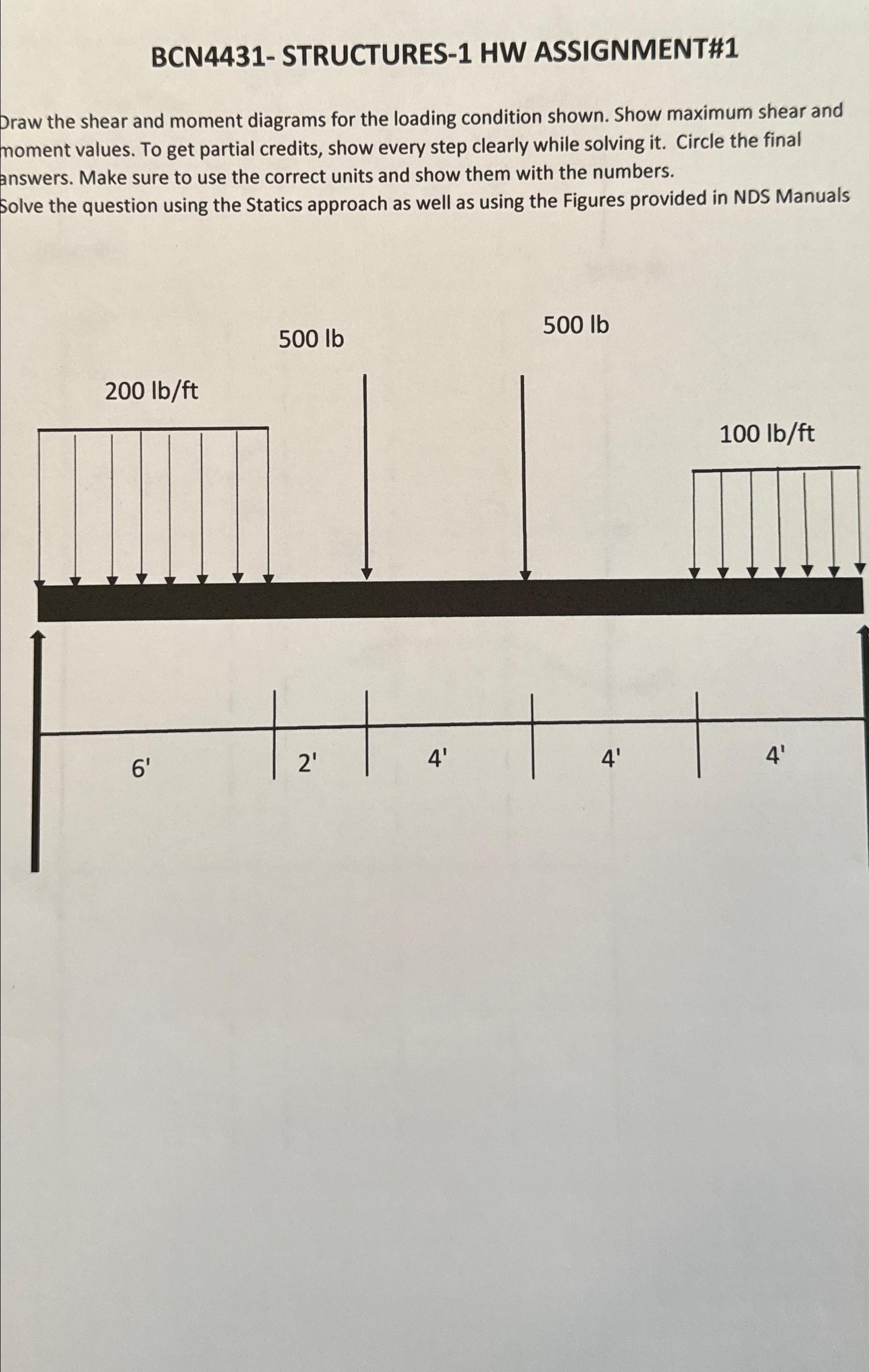

Draw the shear and moment diagrams for the loading condition shown. Show maximum shear and moment values. To get partial credits, show every step clearly while solving it

.

Circle the final answers. Make sure to use the correct units and show them with the numbers.

Solve the question using the Statics approach as well as using the Figures provided in NDS Manuals

\

table

[[,,,,,]]

BCN 4 4 3 1 - STRUCTURES - 1 HW ASSIGNMENT# 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image
