Question: Below are the relationship values and standard reason code i have already completed it need to find another way of doing it Develop an Activity

Below are the relationship values and standard

Below are the relationship values and standard reason code i have already completed it need to find another way of doing it

Below are the relationship values and standard

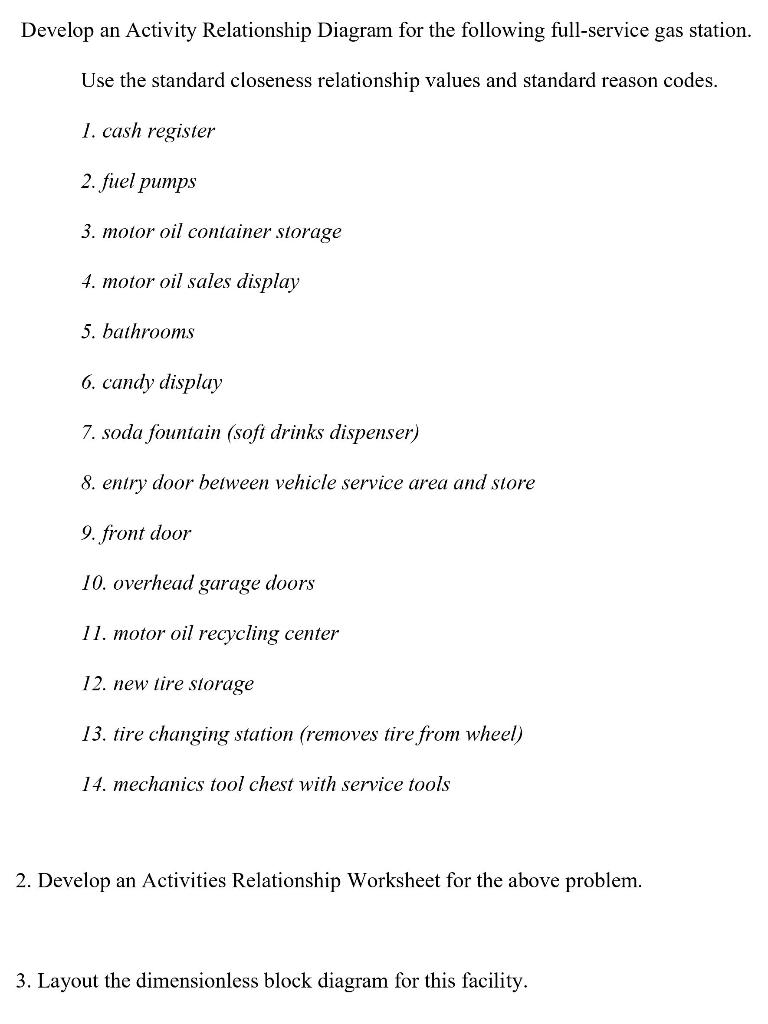

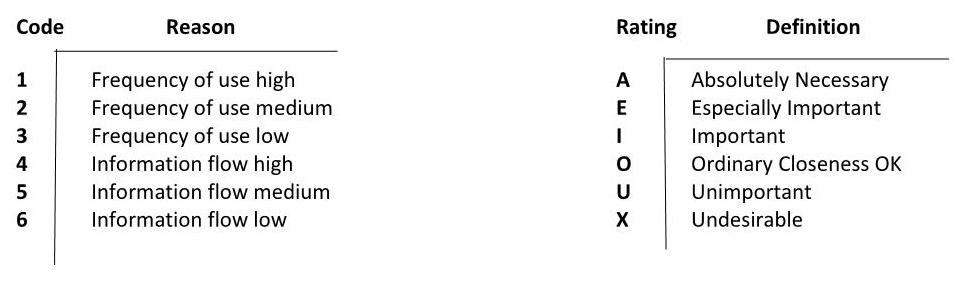

Develop an Activity Relationship Diagram for the following full-service gas station. Use the standard closeness relationship values and standard reason codes. 1. cash register 2. fuel pumps 3. motor oil container storage 4. motor oil sales display 5. bathrooms 6. candy display 7. soda fountain (soft drinks dispenser) 8. entry door between vehicle service area and store 9. front door 10. overhead garage doors 11. motor oil recycling center 12. new tire storage 13. tire changing station (removes tire from wheel) 14. mechanics tool chest with service tools 2. Develop an Activities Relationship Worksheet for the above problem. 3. Layout the dimensionless block diagram for this facility. Code Reason Rating Definition A E Nm 0 0 1 2 3 4 5 6 Frequency of use high Frequency of use medium Frequency of use low Information flow high Information flow medium Information flow low

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
