below is the ERD digram I need a same new normalized ERD diagram as per the requirements and checklist mention below .

1.The old ERD

2. The new Normalized ERD

3.A summary of the changes that you have applied to your design.

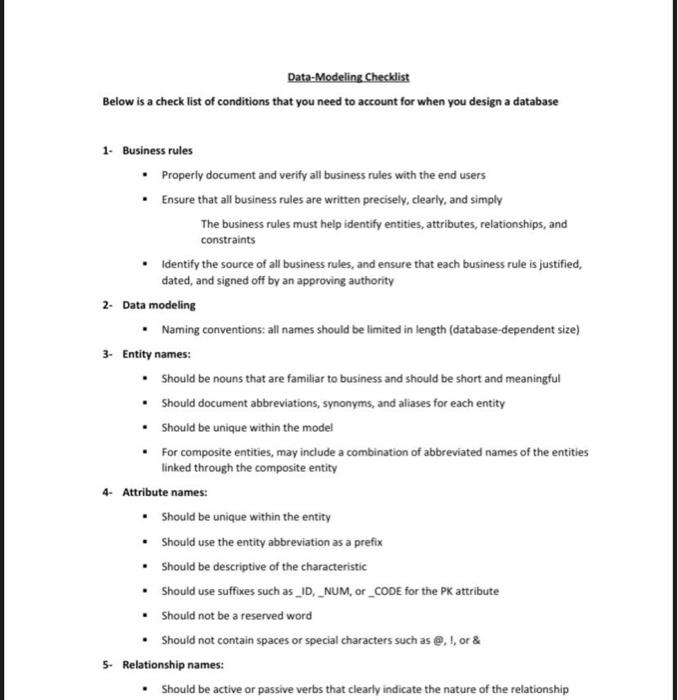

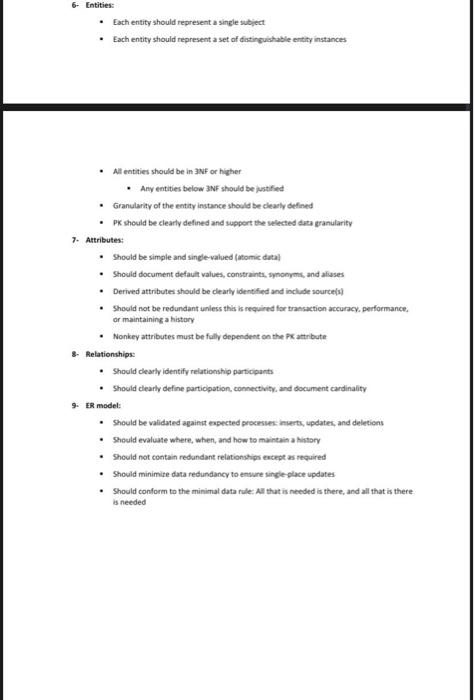

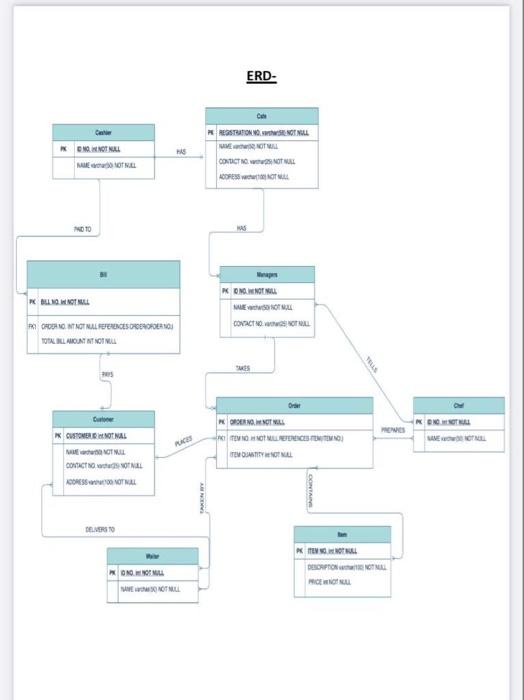

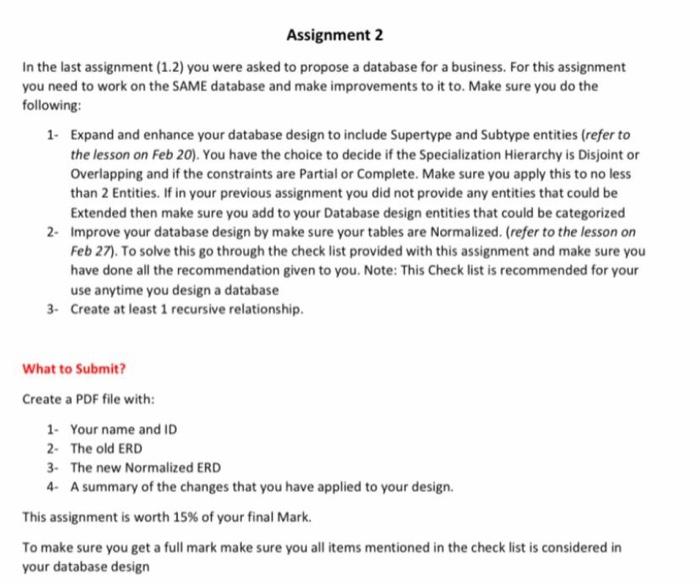

ERD- HS KDO NOT NULL MEEL REGISTRATION.SE ME CONDICTIONS ADDRESS BLOOM KOMONO MESO CONTACTO COMO LLERENCES CORREO TOA. BILLIOUT NT NOTES ES BROERNOOTHIES TO MOMENTO TEMATION BOOT MEN RACES CUSTOMER.NOTAL MET CONTACT NO ONEL CORSOLL AREN DELIVERS TO NENO LE DESCRIPTION CENT RONOOMLA NOTE Assignment 2 In the last assignment (1.2) you were asked to propose a database for a business. For this assignment you need to work on the SAME database and make improvements to it to. Make sure you do the following: 1. Expand and enhance your database design to include Supertype and Subtype entities (refer to the lesson on Feb 20). You have the choice to decide if the Specialization Hierarchy is Disjoint or Overlapping and if the constraints are Partial or Complete. Make sure you apply this to no less than 2 Entities. If in your previous assignment you did not provide any entities that could be Extended then make sure you add to your Database design entities that could be categorized 2. Improve your database design by make sure your tables are Normalized. (refer to the lesson on Feb 27). To solve this go through the check list provided with this assignment and make sure you have done all the recommendation given to you. Note: This Check list is recommended for your use anytime you design a database 3. Create at least 1 recursive relationship. What to Submit? Create a PDF file with: 1. Your name and ID 2- The old ERD 3. The new Normalized ERD 4. A summary of the changes that you have applied to your design. This assignment is worth 15% of your final Mark. To make sure you get a full mark make sure you all items mentioned in the check list is considered in your database design Data-Modeling Checklist Below is a check list of conditions that you need to account for when you design a database 1. Business rules Properly document and verify all business rules with the end users Ensure that all business rules are written precisely, clearly, and simply The business rules must help identify entities, attributes, relationships, and constraints Identify the source of all business rules, and ensure that each business rule is justified, dated, and signed off by an approving authority 2. Data modeling Naming conventions: all names should be limited in length (database-dependent size) 3. Entity names: . Should be nouns that are familiar to business and should be short and meaningful . Should document abbreviations, synonyms, and aliases for each entity . Should be unique within the model . For composite entities, may include a combination of abbreviated names of the entities linked through the composite entity 4- Attribute names: . Should be unique within the entity Should use the entity abbreviation as a prefix Should be descriptive of the characteristic Should use suffixes such as _ID, _NUM, or _CODE for the PK attribute Should not be a reserved word . Should not contain spaces or special characters such as @...or & 5. Relationship names: Should be active or passive verbs that clearly indicate the nature of the relationship 6- Entities: Each entity should represent a single subject Each entity should represent a set of distinguishable entity instances Al entities should be in 3NF or higher . Any entities below 2NF should be justified . Granularity of the entity instance should be dearly defined Pk should be clearly defined and support the selected data granularity 7. Attributes: Should be simple and single valued atomic data . Should document default values, constraints, synonyms, and aliases Derived attributes should be clearly identified and include sources Should not be redundant unless this is required for transaction accuracy, performance, or maintaining a history Nonkey attributes must be fully dependent on the PC attribute Relationships Should dearly identify relationship participants Should clearly define partiopation, connectivity and document cardinality 9. R modeli . Should be validated against expected processes inserts, updates, and deletions Should evaluate where, when, and how to maintain a history Should not contain redundant relationships except as required . Should minimite data redundancy to ensure single place updates Should conform to the minimal data de: All that is needed is there, and all that is there is needed ERD- HS KDO NOT NULL MEEL REGISTRATION.SE ME CONDICTIONS ADDRESS BLOOM KOMONO MESO CONTACTO COMO LLERENCES CORREO TOA. BILLIOUT NT NOTES ES BROERNOOTHIES TO MOMENTO TEMATION BOOT MEN RACES CUSTOMER.NOTAL MET CONTACT NO ONEL CORSOLL AREN DELIVERS TO NENO LE DESCRIPTION CENT RONOOMLA NOTE Assignment 2 In the last assignment (1.2) you were asked to propose a database for a business. For this assignment you need to work on the SAME database and make improvements to it to. Make sure you do the following: 1. Expand and enhance your database design to include Supertype and Subtype entities (refer to the lesson on Feb 20). You have the choice to decide if the Specialization Hierarchy is Disjoint or Overlapping and if the constraints are Partial or Complete. Make sure you apply this to no less than 2 Entities. If in your previous assignment you did not provide any entities that could be Extended then make sure you add to your Database design entities that could be categorized 2. Improve your database design by make sure your tables are Normalized. (refer to the lesson on Feb 27). To solve this go through the check list provided with this assignment and make sure you have done all the recommendation given to you. Note: This Check list is recommended for your use anytime you design a database 3. Create at least 1 recursive relationship. What to Submit? Create a PDF file with: 1. Your name and ID 2- The old ERD 3. The new Normalized ERD 4. A summary of the changes that you have applied to your design. This assignment is worth 15% of your final Mark. To make sure you get a full mark make sure you all items mentioned in the check list is considered in your database design Data-Modeling Checklist Below is a check list of conditions that you need to account for when you design a database 1. Business rules Properly document and verify all business rules with the end users Ensure that all business rules are written precisely, clearly, and simply The business rules must help identify entities, attributes, relationships, and constraints Identify the source of all business rules, and ensure that each business rule is justified, dated, and signed off by an approving authority 2. Data modeling Naming conventions: all names should be limited in length (database-dependent size) 3. Entity names: . Should be nouns that are familiar to business and should be short and meaningful . Should document abbreviations, synonyms, and aliases for each entity . Should be unique within the model . For composite entities, may include a combination of abbreviated names of the entities linked through the composite entity 4- Attribute names: . Should be unique within the entity Should use the entity abbreviation as a prefix Should be descriptive of the characteristic Should use suffixes such as _ID, _NUM, or _CODE for the PK attribute Should not be a reserved word . Should not contain spaces or special characters such as @...or & 5. Relationship names: Should be active or passive verbs that clearly indicate the nature of the relationship 6- Entities: Each entity should represent a single subject Each entity should represent a set of distinguishable entity instances Al entities should be in 3NF or higher . Any entities below 2NF should be justified . Granularity of the entity instance should be dearly defined Pk should be clearly defined and support the selected data granularity 7. Attributes: Should be simple and single valued atomic data . Should document default values, constraints, synonyms, and aliases Derived attributes should be clearly identified and include sources Should not be redundant unless this is required for transaction accuracy, performance, or maintaining a history Nonkey attributes must be fully dependent on the PC attribute Relationships Should dearly identify relationship participants Should clearly define partiopation, connectivity and document cardinality 9. R modeli . Should be validated against expected processes inserts, updates, and deletions Should evaluate where, when, and how to maintain a history Should not contain redundant relationships except as required . Should minimite data redundancy to ensure single place updates Should conform to the minimal data de: All that is needed is there, and all that is there is needed
