Question: Bilgi K] 2) One end of the cable given in the figure is supported on point B and a W- weighted body is attached

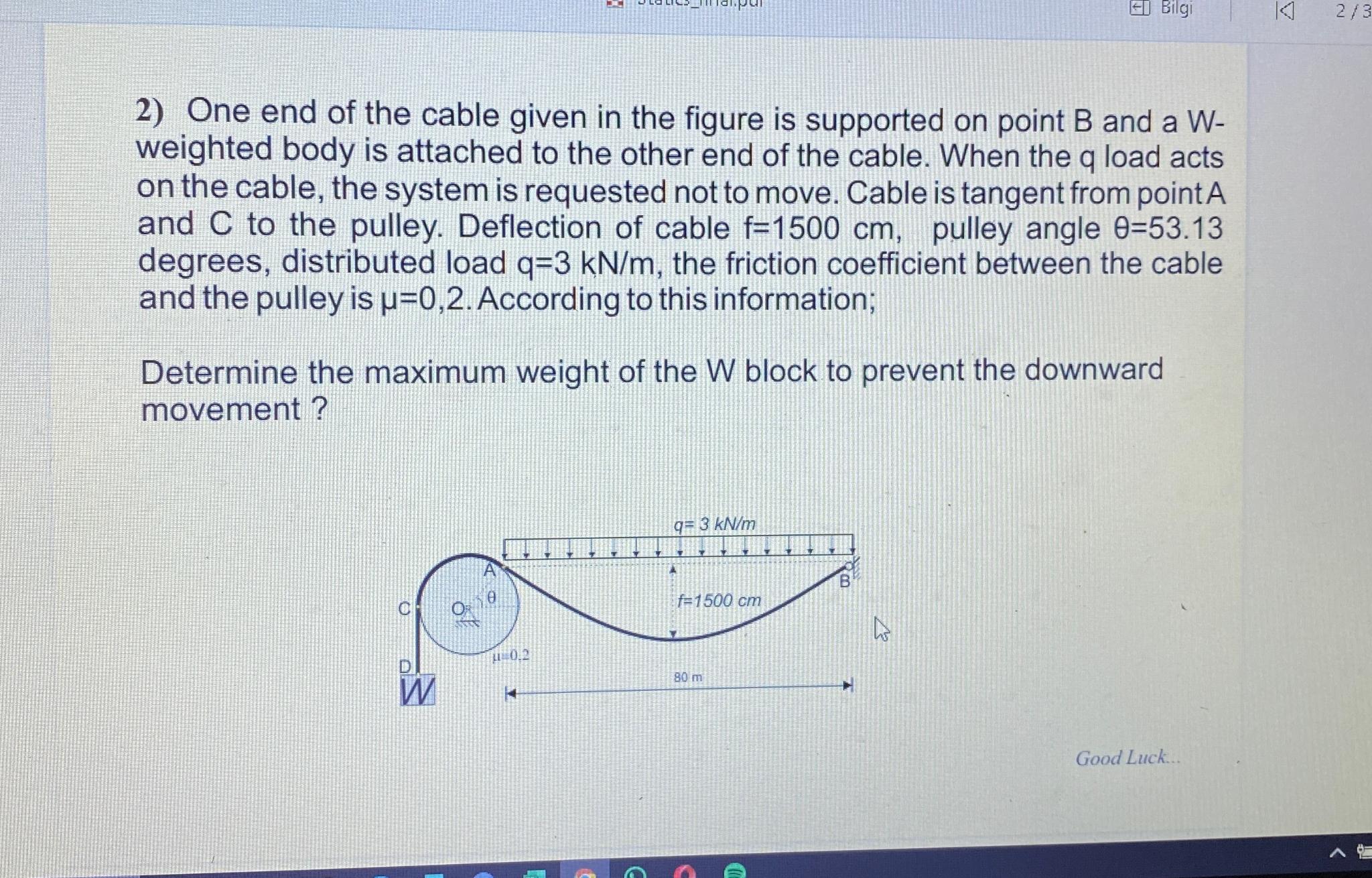

Bilgi K] 2) One end of the cable given in the figure is supported on point B and a W- weighted body is attached to the other end of the cable. When the q load acts on the cable, the system is requested not to move. Cable is tangent from point A and C to the pulley. Deflection of cable f=1500 cm, pulley angle 0=53.13 degrees, distributed load q=3 kN/m, the friction coefficient between the cable and the pulley is u=0,2. According to this information; Determine the maximum weight of the W block to prevent the downward movement? A A q= 3 kN/m f=1500 cm B W 0.2 80 m Good Luck... 2/3
