Question: Boolean Simplification 1 For the Boolean input variables x , Y , consider the output Z ? b = a r ( ( x )

Boolean Simplification 1

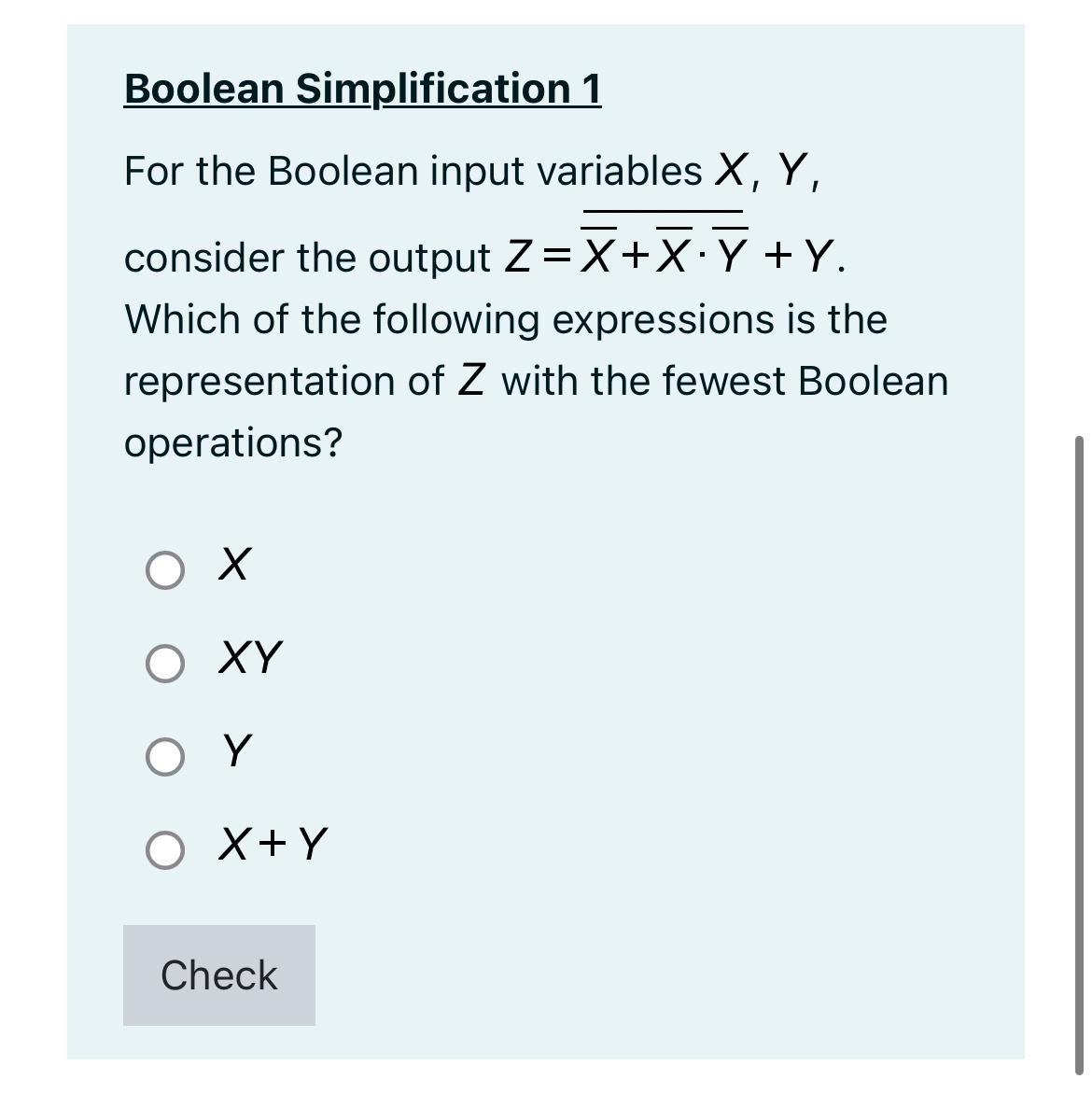

For the Boolean input variables x,Y, consider the output Z?b=ar((x)+(x)*(?bar(Y)))+Y. Which of the following expressions is the representation of Z with the fewest Boolean operations?
x
xY
Y
x+Y
Boolean Simplification 1 For the Boolean input variables x,Y, consider the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
