Business Process Diagrams

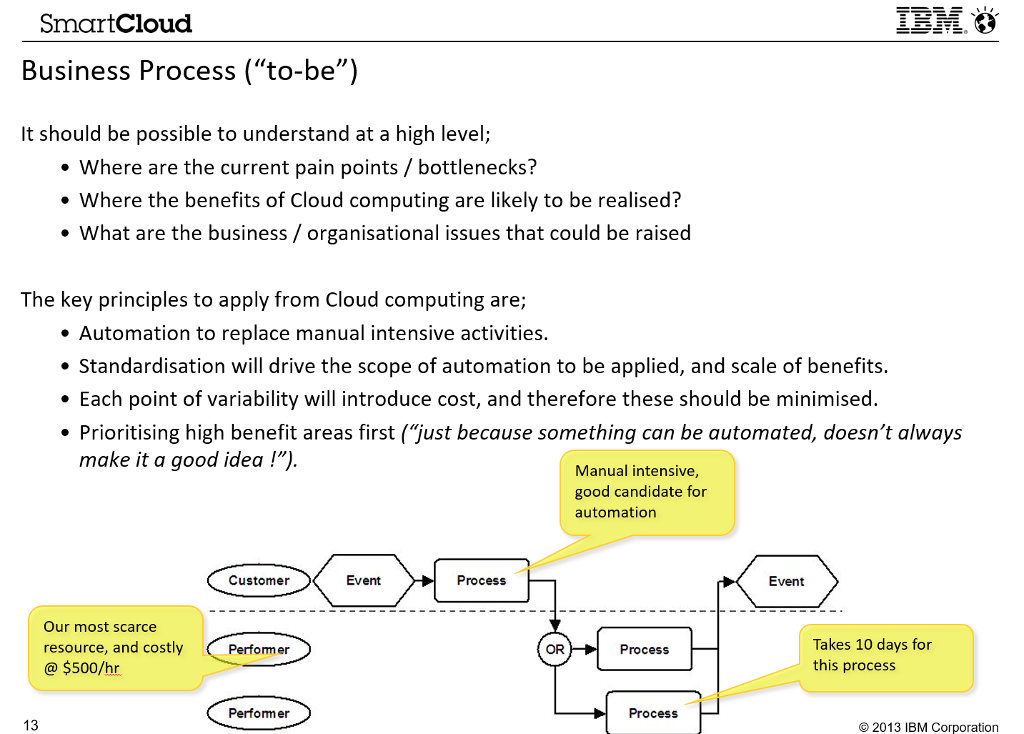

Using slides below from the Team Solution Design collateral as examples, create one "as-is" and one "to-be" diagram. Note: you may want to look at examples of swim lane diagrams on-line.

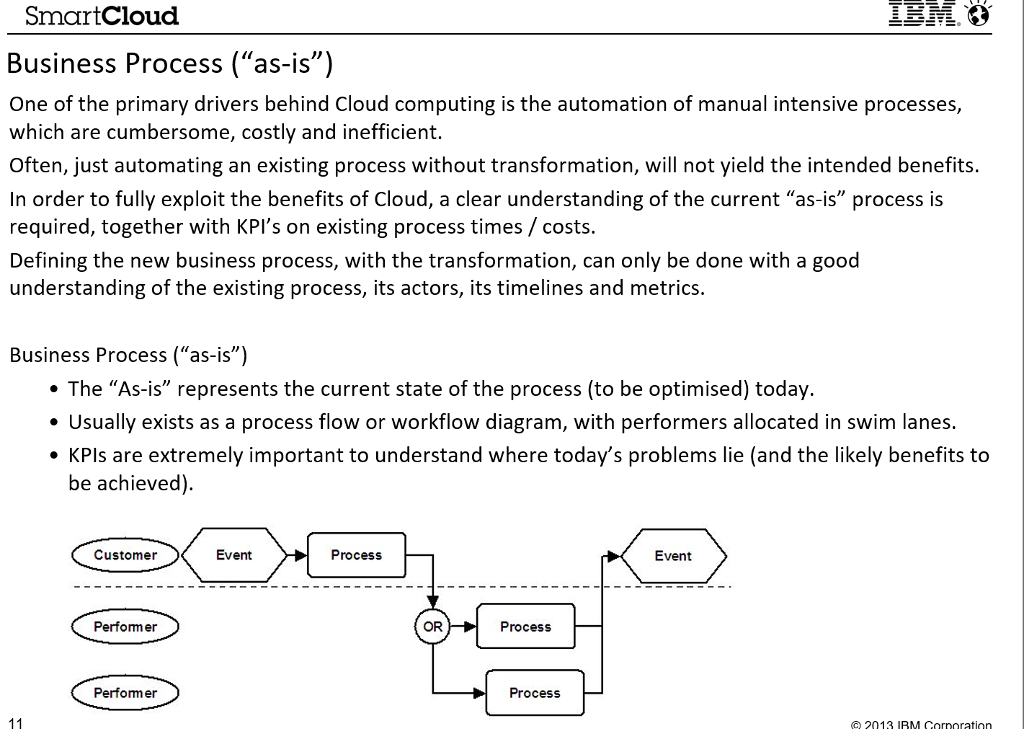

SmartCloud Business Process ("as-is") One of the primary drivers behind Cloud computing is the automation of manual intensive processes, which are cumbersome, costly and inefficient. Often, just automating an existing process without transformation, will not yield the intended benefits. In order to fully exploit the benefits of Cloud, a clear understanding of the current "as-is" process is required, together with KPl's on existing process times/costs Defining the new business process, with the transformation, can only be done with a good understanding of the existing process, its actors, its timelines and metrics. Business Process ("as-is") The "As-is" represents the current state of the process (to be optimised) today Usually exists as a process flow or workflow diagram, with performers allocated in swim lanes. KPls are extremely important to understand where today's problems lie (and the likely benefits to be achieved) Process Customer Event Event Perfommer OR Process Performer Process 2013 IRM Cornoration SmartCloud Business Process ("as-is") One of the primary drivers behind Cloud computing is the automation of manual intensive processes, which are cumbersome, costly and inefficient. Often, just automating an existing process without transformation, will not yield the intended benefits. In order to fully exploit the benefits of Cloud, a clear understanding of the current "as-is" process is required, together with KPl's on existing process times/costs Defining the new business process, with the transformation, can only be done with a good understanding of the existing process, its actors, its timelines and metrics. Business Process ("as-is") The "As-is" represents the current state of the process (to be optimised) today Usually exists as a process flow or workflow diagram, with performers allocated in swim lanes. KPls are extremely important to understand where today's problems lie (and the likely benefits to be achieved) Process Customer Event Event Perfommer OR Process Performer Process 2013 IRM Cornoration
