Question: By using 1-bit full adders, add four 4-bit numbers using the carry save adder organization. Suppose that inverters do not cause delays and that the

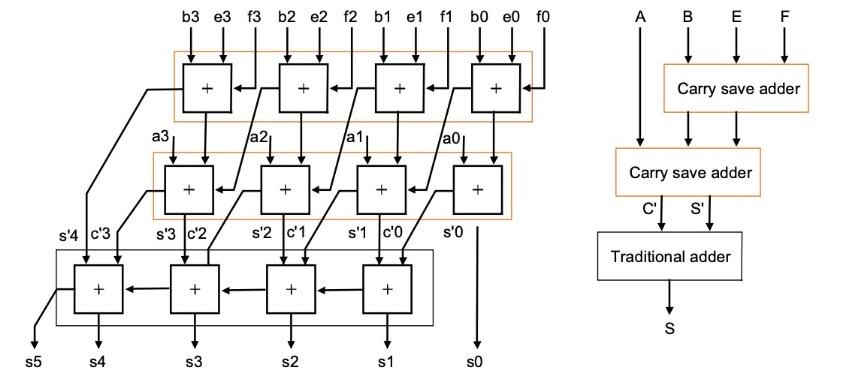

By using 1-bit full adders, add four 4-bit numbers using the carry save adder organization. Suppose that inverters do not cause delays and that the time delay via one gate is T. Determine the time required to add four 4-bit numbers while utilizing the organization of carry save adder while having:

By using 1-bit full adders, add four 4-bit numbers using the carry

A)Gates with only 2 input signals:

B)Gates that accept an infinite number of input signals:

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
