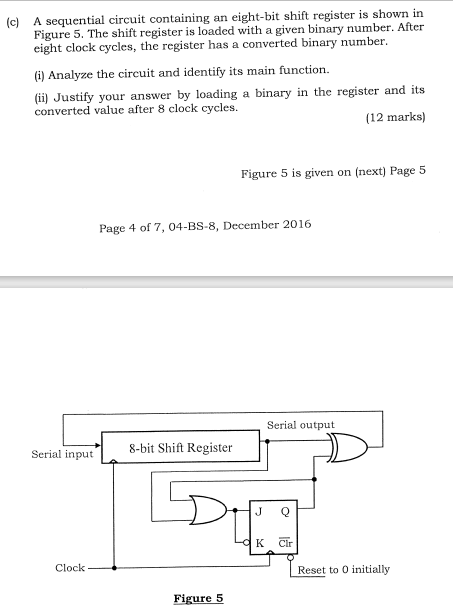

$($c$)$ A sequential circuit containing an eight$-$bit shift register is shown in

Figure $5.$ The shift register is loaded with a given binary number. After

eight clock cycles, the register has a converted binary number.

$($i$)$ Analyze the circuit and identify its main function.

$($ii$)$ Justify your answer by loading a binary in the register and its

converted value after $8$ clock cycles.

Figure $5$ is given on $($next$)$ Page $5$

Page $4$ of $7,04-$BS$-8,$ December $2016$

Figure $5$
