Question: ( c ) Consider a unity feedback system, as shown in Figure 7 ( a ) . The poles and zeros of G ( s

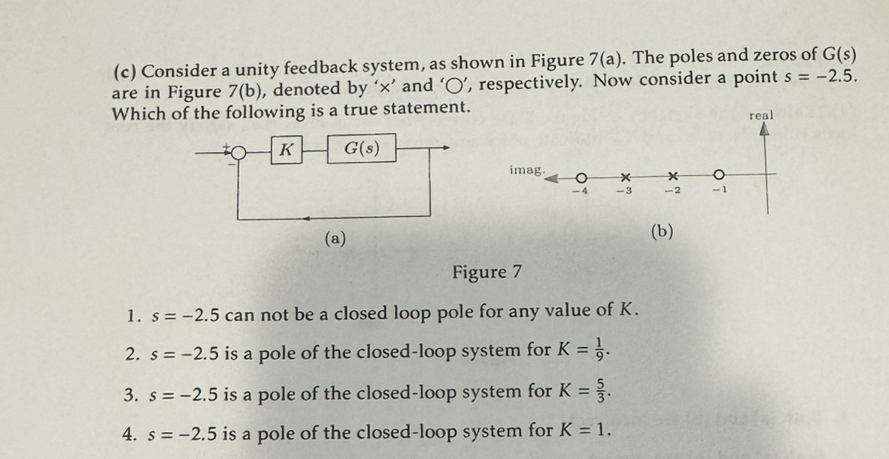

(c) Consider a unity feedback system, as shown in Figure 7(a). The poles and zeros of G(s) are in Figure 7(b), denoted by 'x' and 'O', respectively. Now consider a point s=-2.5. Which of the following is a true statement.
Figure 7
s=-2.5 can not be a closed loop pole for any value of K.
s=-2.5 is a pole of the closed-loop system for K=19.
s=-2.5 is a pole of the closed-loop system for K=53.
s=-2.5 is a pole of the closed-loop system for K=1.
