Question: Calculate the support reaction ( s ) at ( A ) and then draw the free - body diagram of segment (

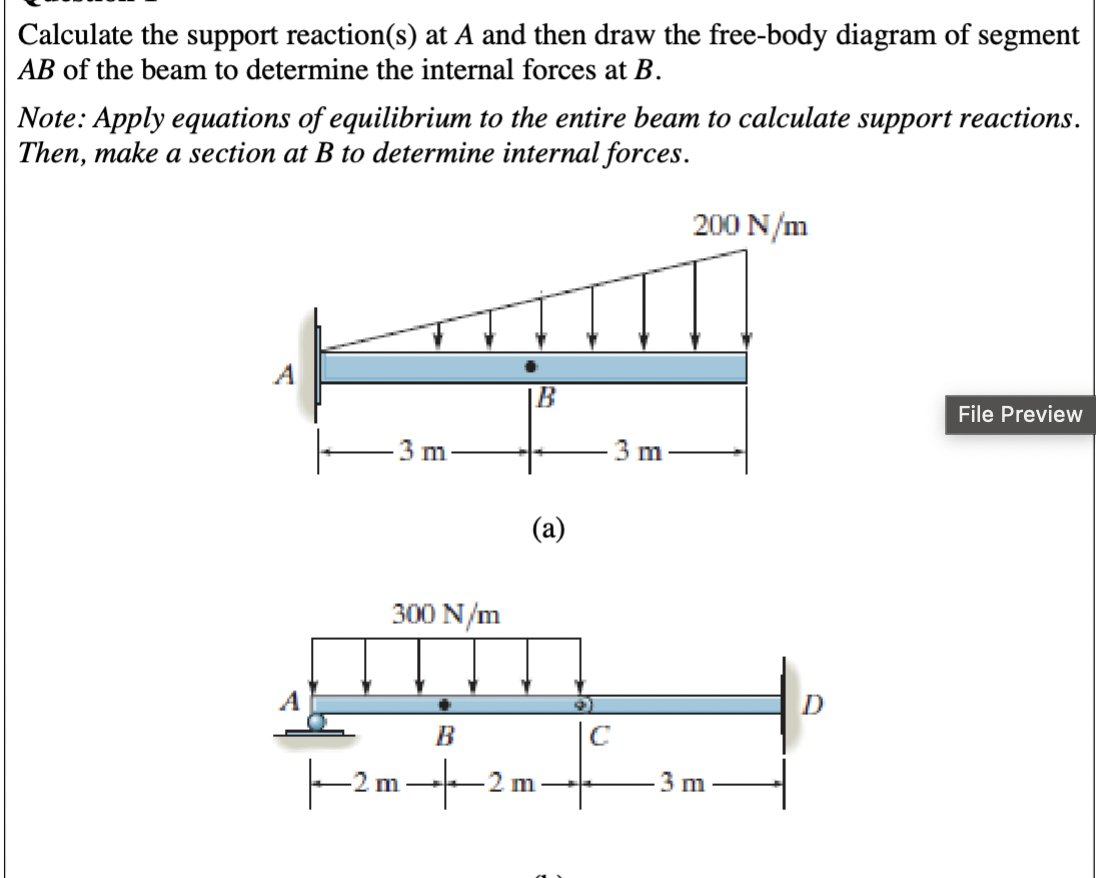

Calculate the support reaction(s) at \( A \) and then draw the free-body diagram of segment \( A B \) of the beam to determine the internal forces at \( B \).
Note: Apply equations of equilibrium to the entire beam to calculate support reactions. Then, make a section at B to determine internal forces.
Calculate the support reaction ( s ) at \ ( A \ )

Step by Step Solution

There are 3 Steps involved in it
