can someone help me answer this question

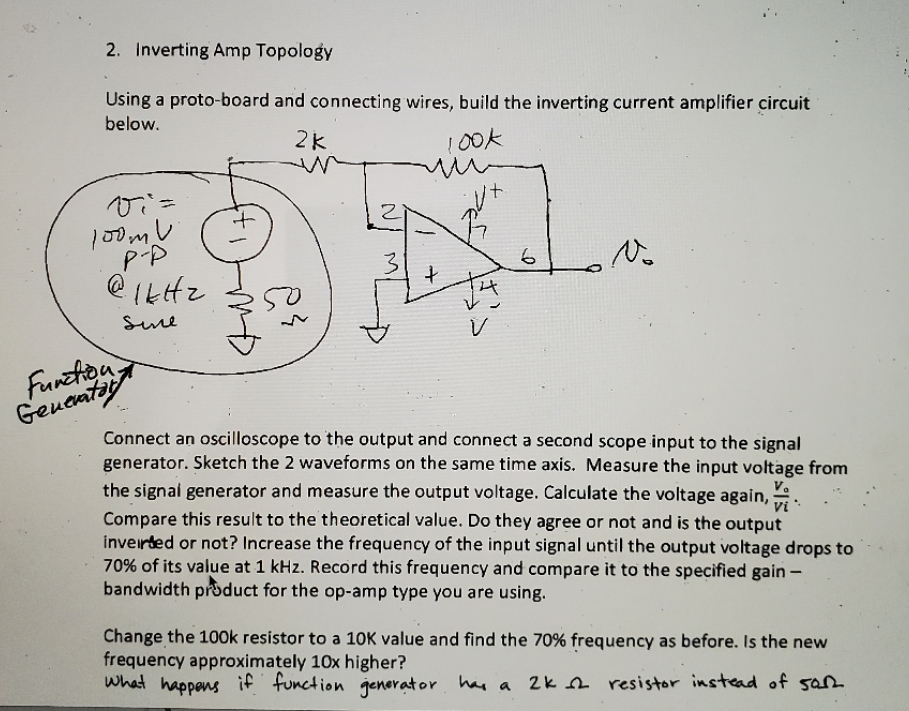

2. Inverting Amp Topology Using a proto-board and connecting wires, build the inverting current amplifier circuit below. 2k 100 k WW 100 m V P- P + @ 1KHz Function Genevatary Connect an oscilloscope to the output and connect a second scope input to the signal generator. Sketch the 2 waveforms on the same time axis. Measure the input voltage from the signal generator and measure the output voltage. Calculate the voltage again, vi . Compare this result to the theoretical value. Do they agree or not and is the output inverted or not? Increase the frequency of the input signal until the output voltage drops to 70% of its value at 1 kHz. Record this frequency and compare it to the specified gain - bandwidth product for the op-amp type you are using. Change the 100k resistor to a 10K value and find the 70% frequency as before. Is the new frequency approximately 10x higher? What happens if function generator has a 2K 12 resistor instead of san
