Can someone help with this question please:

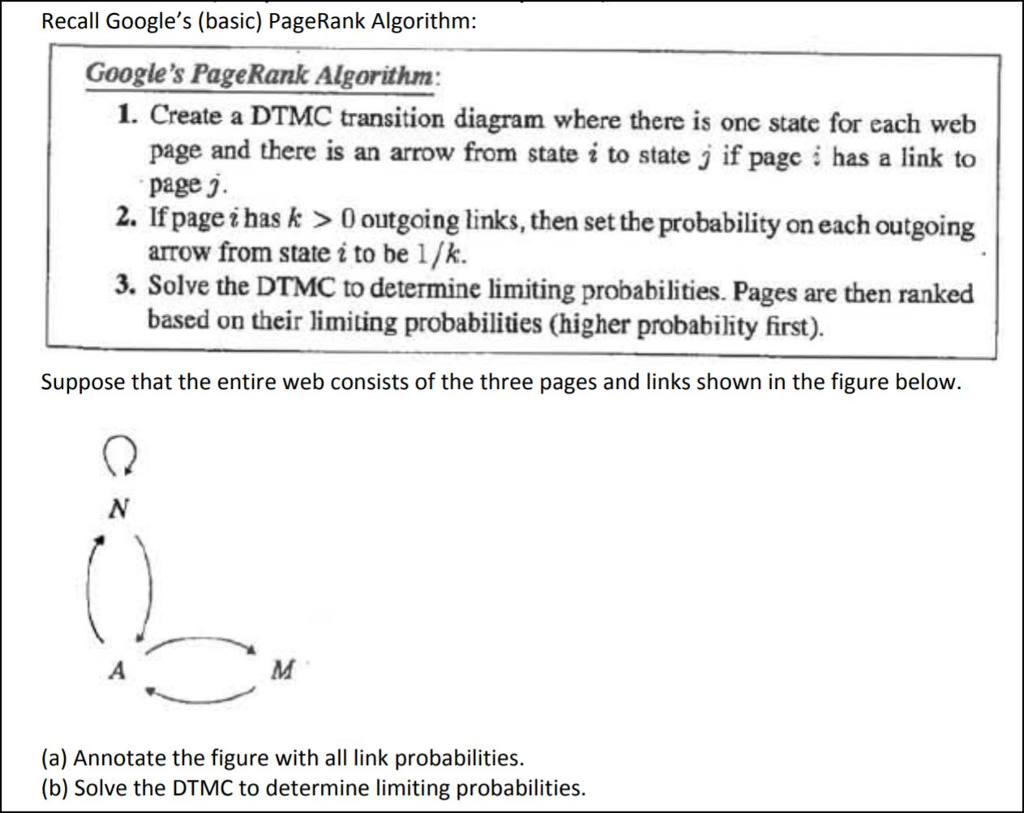

Recall Google's (basic) PageRank Algorithm: Google's PageRank Algorithm 1. Create a DTMC transition diagram where there is onc state for each web page and there is an arrow from state i to state j if page has a link to 2. If page i has k> 0 outgoing links, then set the probability on each outgoing 3. Solve the DTMC to determine limiting probabilities. Pages are then ranked page arrow from state i to be 1/k. based on their limiting probabilities (higher probability first). Suppose that the entire web consists of the three pages and links shown in the figure below. (a) Annotate the figure with all link probabilities. (b) Solve the DTMC to determine limiting probabilities. Recall Google's (basic) PageRank Algorithm: Google's PageRank Algorithm 1. Create a DTMC transition diagram where there is onc state for each web page and there is an arrow from state i to state j if page has a link to 2. If page i has k> 0 outgoing links, then set the probability on each outgoing 3. Solve the DTMC to determine limiting probabilities. Pages are then ranked page arrow from state i to be 1/k. based on their limiting probabilities (higher probability first). Suppose that the entire web consists of the three pages and links shown in the figure below. (a) Annotate the figure with all link probabilities. (b) Solve the DTMC to determine limiting probabilities
